ACM36US15

Active

XP Power

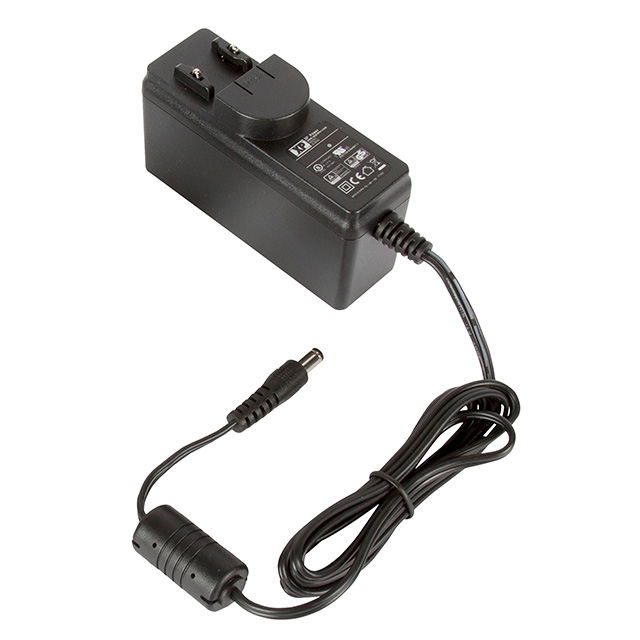

AC/DC WALL MOUNT ADAPTER 15V 36W

Search across all available documentation for this part.

Active

XP Power

AC/DC WALL MOUNT ADAPTER 15V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	ACM36US15

Applications	ITE (Commercial), Medical
Approval Agency	CE, CSA, CB, TUV, UL
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.4 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	96.7 mm
Size / Dimension [x]	3.93 in
Size / Dimension [y]	1.29 "
Size / Dimension [y]	33 mm
Size / Dimension [z]	2.34 in
Size / Dimension [z]	59.5 mm
Standard Number	60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

AC/DC WALL MOUNT ADAPTER 15V 36W

Part	Power (Watts)	Voltage - Output	No Load Power Consumption [Max]	Cord Length	Cord Length	Form	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [x]	Applications	Input Connector	Standard Number	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Input Type	Operating Temperature [Max]	Operating Temperature [Min]
XP Power ACM36US15	36 W	15 VDC	75 mW	1.5 m	59 in	Wall Mount (Class II)	2.4 A	90 VAC	264 VAC	CoC Tier 2, Level VI	Barrel Plug	2.5 mm, 5.5 mm	11 mm	ITE (Commercial), Medical	Multi-Blade	60601-1, 62368-1	CB, CE, CSA, TUV, UL	2.34 in	96.7 mm	1.29 "	33 mm	3.93 in	59.5 mm	International	Multi-Blade (Sold Separately)	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
