430500-04-0
ActiveCurtis Industries

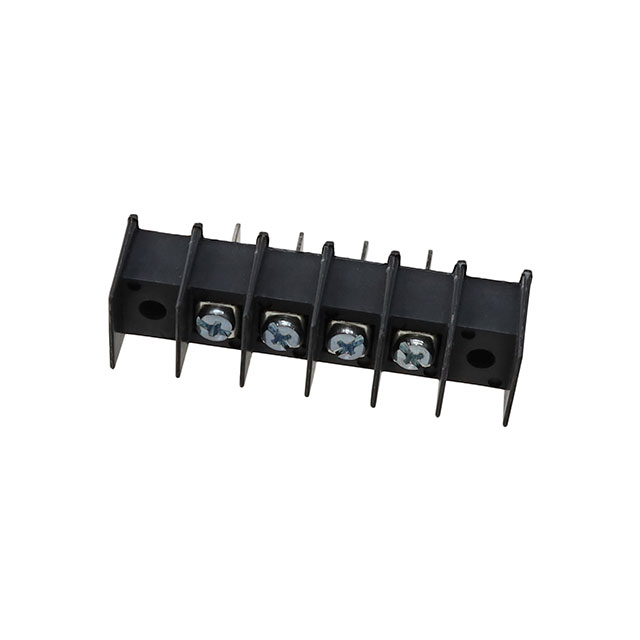

CONN BARRIER STRIP 4CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
430500-04-0
ActiveCurtis Industries
CONN BARRIER STRIP 4CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 430500-04-0 | 430500 Series |
|---|---|---|
| Barrier Type | - | 2 Wall (Dual) |
| Bottom Termination | - | Quick Connect |
| Current Rating (Amps) | - | 20 A |
| Features | - | Flange |
| Material - Insulation | - | Polypropylene (PP) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | - | Panel, Chassis |
| null | - | |
| Number of Circuits | - | 4 - 24 |
| Number of Rows | - | 1 |
| Number of Wire Entries | - | 4 - 21 |
| Operating Temperature | - | 105 C |
| Pitch | - | 11.12 mm |
| Pitch | - | 0.438 in |
| Terminal Block Type | - | Barrier Block |
| Terminal Screw Finish | - | Zinc |
| Terminal Screw Material | - | Steel |
| Top Termination | - | Screws |
| Voltage Rating | - | 600 V |
| Wire Gauge | - | 12 AWG |
| Wire Gauge | - | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
430500 Series
CONN BARRIER STRP 24CIRC 0.438"
| Part | Material - Insulation | Pitch [x] | Pitch [x] | Terminal Block Type | Terminal Screw Finish | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Top Termination | Number of Circuits | Voltage Rating | Operating Temperature | Features | Current Rating (Amps) | Barrier Type | Number of Rows | Mounting Type | Terminal Screw Material | Material Flammability Rating | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 430500-24-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 24 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | |
Curtis Industries 430500-18-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 18 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | 18 |
Curtis Industries 430500-04-0 | ||||||||||||||||||||
Curtis Industries 430500-05-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 5 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | 5 |
Curtis Industries 430500-21-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 21 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | 21 |
Curtis Industries 430500-07-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 7 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | 7 |
Curtis Industries 430500-04-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 4 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | 4 |
Curtis Industries 430500-16-0 | Polypropylene (PP) | 11.12 mm | 0.438 in | Barrier Block | Zinc | Quick Connect | 12 AWG | 22 AWG | Screws | 16 | 600 V | 105 C | Flange | 20 A | 2 Wall (Dual) | 1 | Chassis, Panel | Steel | UL94 V-0 | 16 |
Description
General part information
430500 Series
4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
