1274563-1
ActiveTE Connectivity AMP Connectors
CONN MINI BNC PLG STR 75 OHM
Deep-Dive with AI
Search across all available documentation for this part.
1274563-1
ActiveTE Connectivity AMP Connectors
CONN MINI BNC PLG STR 75 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1274563-1 | 1274563 Series |
|---|---|---|
| Body Finish | Nickel | Nickel |
| Body Material | Brass | Brass |
| Cable Group | AT&T 735A | AT&T 734A, AT&T 735A |
| Center Contact Material | Brass | Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | Mini, BNC | Mini, BNC |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Crimp | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Frequency - Max [Max] | 2 GHz | 2 GHz |
| Housing Color | Silver | Silver |
| Impedance | 75 Ohms | 75 Ohms |

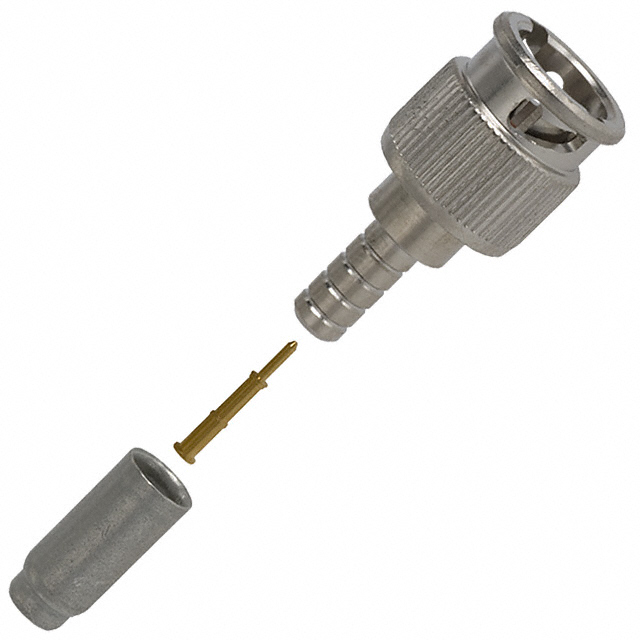

| Includes | 1 Ferrule, 1 Contact, 1 Connector | 1 Ferrule, 1 Contact, 1 Connector |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shield Termination | Crimp | Crimp |
| Voltage Rating | 300 VDC | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1274563 Series
CONN MINI BNC PLG STR 75 OHM
| Part | Dielectric Material | Fastening Type | Impedance | Frequency - Max [Max] | Mating Cycles | Voltage Rating | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Housing Color | Connector Type | Contact Termination | Center Contact Plating | Cable Group | Center Contact Material | Body Finish | Mounting Type | Includes | Shield Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1274563-2 | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 75 Ohms | 2 GHz | 500 | 300 VDC | BNC, Mini | 85 °C | -40 °C | Brass | Silver | Male Pin, Plug | Crimp | Gold | AT&T 734A | Brass | Nickel | Free Hanging (In-Line) | 1 Connector, 1 Contact, 1 Ferrule | Crimp | 1 |
TE Connectivity AMP Connectors 1274563-1 | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 75 Ohms | 2 GHz | 500 | 300 VDC | BNC, Mini | 85 °C | -40 °C | Brass | Silver | Male Pin, Plug | Crimp | Gold | AT&T 735A | Brass | Nickel | Free Hanging (In-Line) | 1 Connector, 1 Contact, 1 Ferrule | Crimp | 1 |
Description
General part information
1274563 Series
BNC, Mini Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
