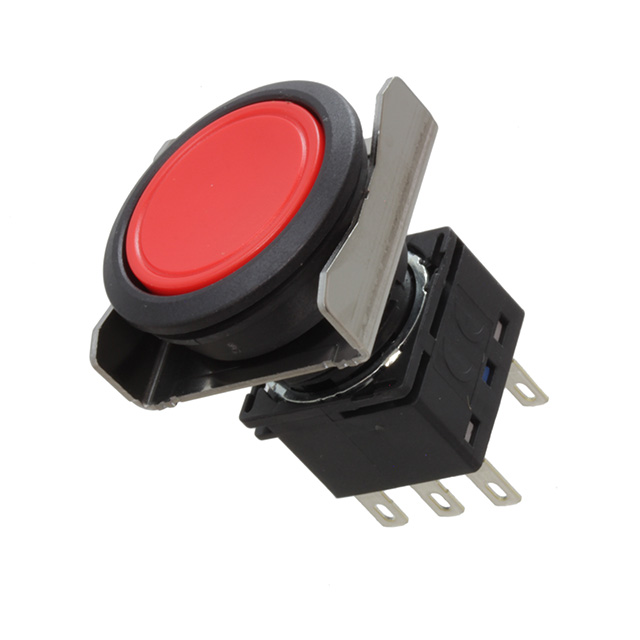

Specification	LBW6B-M1T6R

Actuator Marking	No Marking
Actuator Type	Round, Flush, Button
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating	5 A
Electrical Life (Cycles)	50000
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	2000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	22.3 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Mom
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LBW6B Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Voltage Rating - AC	Switch Function	Panel Cutout Diameter	Panel Cutout Shape	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Actuator Marking	Voltage Rating - DC	Circuit	Mounting Type	Actuator Type	Termination Style	Type	Ingress Protection IP Rating	Ingress Protection Description	Color - Actuator/Cap	Quick Connect Size (0.110")
IDEC LBW6B-A1T3VW	250000 Cycles	50000	125 V	On-On	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	3PDT	Front Panel Mount	Button Flush Round	PC Pin	Standard	IP65	Dust Tight Water Resistant	White
IDEC LBW6B-A1T3B	250000 Cycles	50000	125 V	On-On	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	3PDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Black	0.11 in
IDEC LBW6B-M1T5G	2000000 Cycles	50000	125 V	On-Mom	22.3 mm	Circular	-25 °C	60 °C	5 A	No Marking	30 V	SPDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Green	0.11 in
IDEC LBW6B-A1T2S	250000 Cycles	50000	125 V	On-On	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Blue	0.11 in
IDEC LBW6B-M1T1LB	2000000 Cycles	50000	125 V	On-Mom	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	SPDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Black	0.11 in
IDEC LBW6B-M1T1Y	2000000 Cycles	50000	125 V	On-Mom	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	SPDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Yellow	0.11 in
IDEC LBW6B-M1T3G	2000000 Cycles	50000	125 V	On-Mom	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	3PDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Green	0.11 in
IDEC LBW6B-M1T2VR	2000000 Cycles	50000	125 V	On-Mom	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Front Panel Mount	Button Flush Round	PC Pin	Standard	IP65	Dust Tight Water Resistant	Red
IDEC LBW6B-A1T2Y	250000 Cycles	50000	125 V	On-On	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Front Panel Mount	Button Flush Round	Quick Connect Solder	Standard	IP65	Dust Tight Water Resistant	Yellow	0.11 in
IDEC LBW6B-M1T2VB	2000000 Cycles	50000	125 V	On-Mom	22.3 mm	Circular	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Front Panel Mount	Button Flush Round	PC Pin	Standard	IP65	Dust Tight Water Resistant	Black
