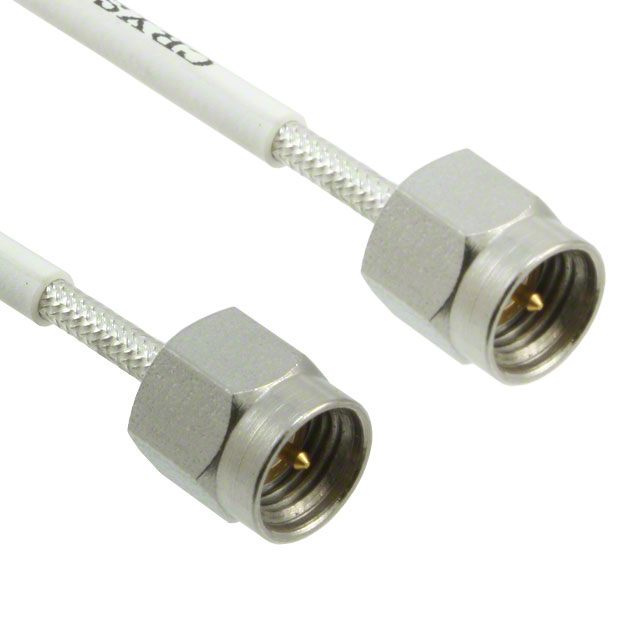

CCSMA26.5-MM-086-8
ActiveCrystek Corporation
CBL ASSY SMA PLUG TO PLUG 8"
CCSMA26.5-MM-086-8
ActiveCrystek Corporation
CBL ASSY SMA PLUG TO PLUG 8"
Description
General part information
CCSMA26.5-MM-086-8
Cable Assembly Coaxial SMA to SMA Hand Formable .086 8.000" (203.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CCSMA26.5-MM-086-8 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable |
| Cable Type Size | 0.086 |
| Color | Silver |
| Features | Shielded |
| Frequency - Max | 26.5 GHz |
| Length | 8 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
