1010BSW
ActiveKanebridge
SELF-TAPPING SCREW - TYPE B - SL
1010BSW
ActiveKanebridge
SELF-TAPPING SCREW - TYPE B - SL
Description
General part information
1010BSW

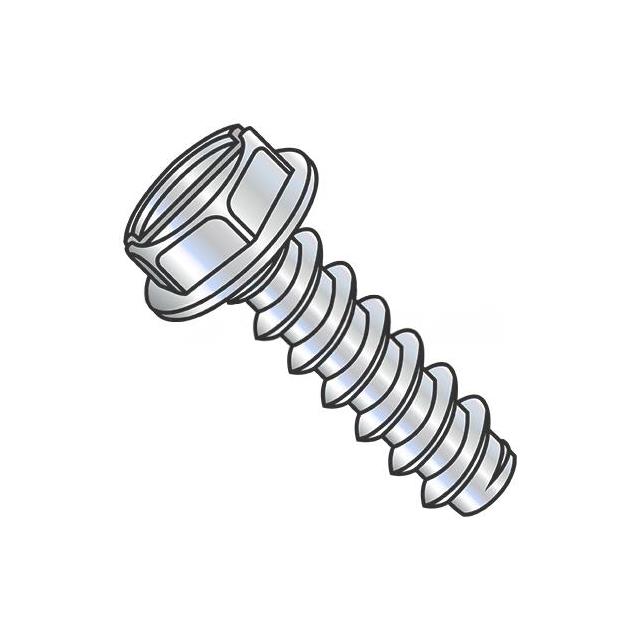

#10-16 Indented Hex Head Self-Tapping Screw Slotted Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010BSW |
|---|---|
| Drive Type | Slotted |
| Features | Washer Included |
| Head Diameter | 0.309 in |
| Head Height | 0.113 in |
| Length - Below Head | 0.625 in |
| Length - Overall | 0.738 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Indented Hex Head |
| Thread Size (Max) | 16 mm |
| Thread Size (Min) | 10 mm |
| Type | Self-Tapping Screw |
