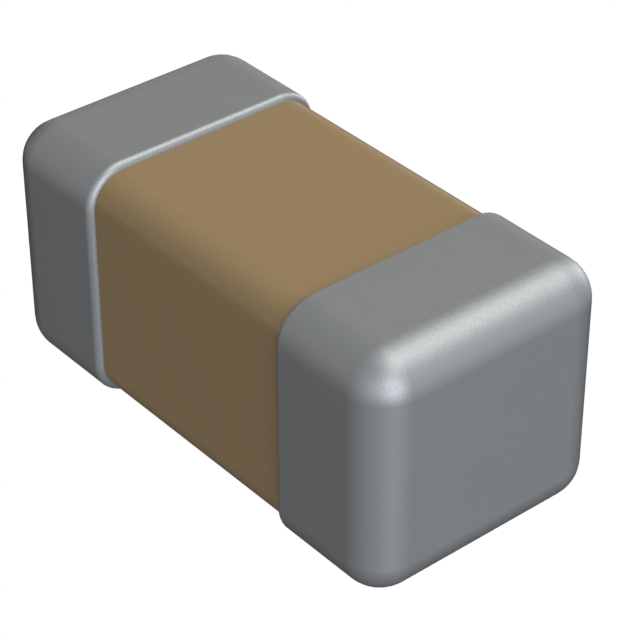

C06CF1R0B-9ZN-X1T

Active

Knowles Novacap

CAP CER 1PF 250V CL 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMLC, SLC Capacitor Catalog ~

C06CF1R0B-9ZN-X1T

Active

Knowles Novacap

CAP CER 1PF 250V CL 0603

Deep-Dive with AI

DocumentsMLC, SLC Capacitor Catalog ~

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.27
		10	$ 2.15
		50	$ 1.70
		100	$ 1.56
	Digi-Reel®	1	$ 3.27
		10	$ 2.15
		50	$ 1.70
		100	$ 1.56
	Tape & Reel (TR)	500	$ 0.88

Description

General part information

C06CF Series

1 pF ±0.1pF 250V Ceramic Capacitor CL 0603 (1608 Metric)

Documents

Technical documentation and resources

MLC, SLC Capacitor Catalog ~

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C06CF1R0B-9ZN-X1T	C06CF Series

Applications	High Frequency, Microwave, RF	High Frequency, Microwave, RF
Capacitance	1 pF	0.15 - 43 pF
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm	1.52 - 1.6 mm
Size / Dimension [x]	0.063 in	0.06 - 0.063 in
Size / Dimension [y]	0.79 mm	0.76 - 0.79 mm
Size / Dimension [y]	0.031 in	0.03 - 0.031 "
Temperature Coefficient	-	NP0, C0G
Thickness (Max) [Max]	0.03 in	0.03 in
Thickness (Max) [Max]	0.76 mm	0.76 mm
Tolerance	0.1 pF	0.1 - 10 pF
Voltage - Rated	250 V	250 V

C06CF Series

CAP CER 0603

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Applications	Tolerance	Mounting Type	Package / Case	Temperature Coefficient
Knowles Novacap C06CF0R6B-9UN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	0.6 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	0.1 pF	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF120J-9UN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	12 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	5 %	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CFR55B-9UN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	0.55 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	0.1 pF	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF200J-9UN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	20 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	5 %	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF430K-9UN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	43 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	10 %	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF7R5B-9UN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	7.5 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	0.1 pF	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF6R2C-9ZN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	6.2 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	0.25 pF	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF120J-9ZN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	12 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	5 %	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CF8R2B-9ZN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	8.2 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	0.1 pF	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
Knowles Novacap C06CFR15C-9ZN-X1T	0.76 mm	1.52 mm	0.06 in	0.03 "	0.15 pF	-55 °C	125 °C	250 V	High Frequency, Microwave, RF	0.25 pF	MLCC, Surface Mount	0603 (1608 Metric)	C0G, NP0
