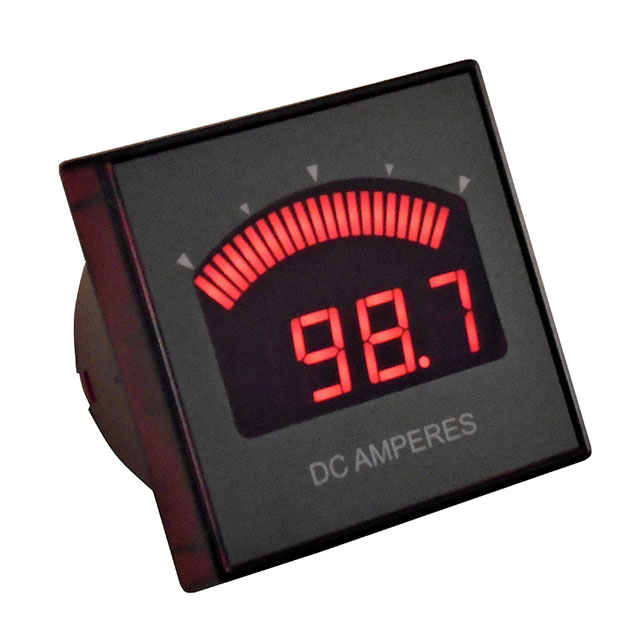

DMR35-DCA3-DC1-R
ActiveMurata Power Solutions Inc.
SWITCH SELECTABLE UNIPOLAR 5-500
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMR35-DCA3-DC1-R
ActiveMurata Power Solutions Inc.
SWITCH SELECTABLE UNIPOLAR 5-500
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMR35-DCA3-DC1-R |
|---|---|
| Display Characters - Height [z] | 0.45 in |
| Display Characters - Height [z] | 11.43 mm |
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 500 A |
| Measuring Range [Min] | 5 A |
| Measuring Type | Current |
| Number of Characters Per Row | 3.5 |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 95.83 | |
| 5 | $ 90.54 | |||
| 10 | $ 89.22 | |||
| 25 | $ 85.92 | |||
| 50 | $ 82.61 | |||
| 100 | $ 82.61 | |||
DMR35-DCA3 Series
SWITCH SELECTABLE UNIPOLAR 5-500
| Part | Measuring Range [Max] | Measuring Range [Min] | Number of Characters Per Row | Type | Measuring Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Termination Style | Display Characters - Height [z] | Display Characters - Height [z] | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMR35-DCA3-DC1-R | 500 A | 5 A | 3.5 | Ammeter | Current | 9 V | 32 VDC | Screw Terminal | 0.45 in | 11.43 mm | LED - Red Characters |
Description
General part information
DMR35-DCA3 Series
Ammeter LED - Red Characters Display Panel Mount
