PEC35SAFN

Active

Sullins Connector Solutions

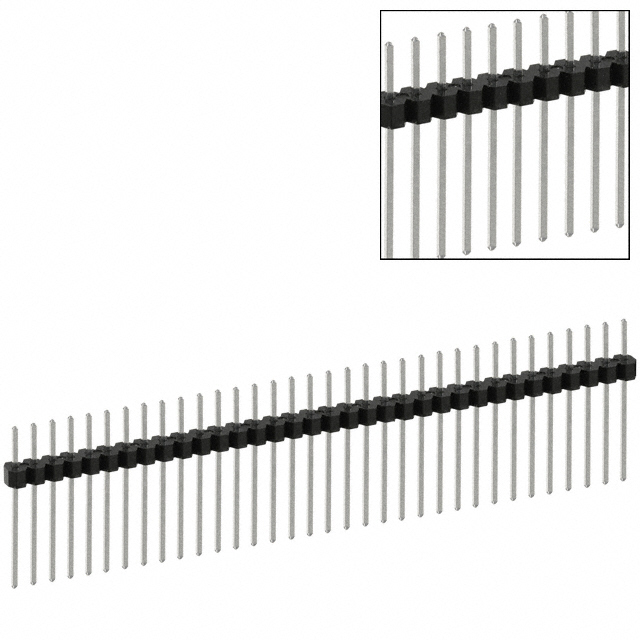

CONN HEADER VERT 35POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC35SAFN

Active

Sullins Connector Solutions

CONN HEADER VERT 35POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC35SAFN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.62 in
Contact Length - Post	15.75 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	35
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	24.13 mm
Overall Contact Length	0.95 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC35 Series

Part	Insulation Height	Insulation Height	Termination	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Style	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Fastening Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Shrouding	Contact Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PEC35SADN	0.1 in	2.54 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All	0.75 in	19.05 mm	UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	10.67 mm	0.42 in	0.23 in	5.84 mm	1	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole	Phosphor Bronze	125 °C	-65 ░C	35
Sullins Connector Solutions PEC35DAAN	0.1 in	2.54 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All	0.45 "	11.43 mm	UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	3.05 mm	0.12 in	0.23 in	5.84 mm	2	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole	Phosphor Bronze	125 °C	-65 ░C	70	2.54 mm	0.1 in
Sullins Connector Solutions PEC35SACN	0.1 in	2.54 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All		0.65 in	UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.13 mm	0.32 in	0.23 in	5.84 mm	1	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole	Phosphor Bronze	125 °C	-65 ░C	35			16.51 mm
Sullins Connector Solutions PEC35DFCN	0.1 in	2.54 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All	0.738 "	18.75 mm	UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.13 mm	0.32 in	0.318 "		2	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole	Phosphor Bronze	125 °C	-65 ░C	70	2.54 mm	0.1 in		8.08 mm
Sullins Connector Solutions PEC35SGBN	0.14 in	3.56 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All			UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	5.08 mm	0.2 in	0.318 "		1	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole Right Angle	Phosphor Bronze	125 °C	-65 ░C	35				8.08 mm
Sullins Connector Solutions PEC35DBEN	0.24 in	6.1 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All			UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)			0.23 in	5.84 mm	2	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole Right Angle	Phosphor Bronze	125 °C	-65 ░C	70	2.54 mm	0.1 in			12.7 mm	0.5 in
Sullins Connector Solutions PEC35SBCN	0.14 in	3.56 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All			UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	7.62 mm	0.3 "	0.23 in	5.84 mm	1	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole Right Angle	Phosphor Bronze	125 °C	-65 ░C	35
Sullins Connector Solutions PEC35DBAN	0.24 in	6.1 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All			UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)			0.23 in	5.84 mm	2	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole Right Angle	Phosphor Bronze	125 °C	-65 ░C	70	2.54 mm	0.1 in			2.54 mm	0.1 in
Sullins Connector Solutions PEC35SAFN	0.1 in	2.54 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All	0.95 in	24.13 mm	UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)			0.23 in	5.84 mm	1	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole	Phosphor Bronze	125 °C	-65 ░C	35					15.75 mm	0.62 in
Sullins Connector Solutions PEC35DACN	0.1 in	2.54 mm	Solder	Breakaway Header	0.1 in	2.54 mm	Black	Board to Board Cable	All		0.65 in	UL94 V-0	Push-Pull	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	8.13 mm	0.32 in	0.23 in	5.84 mm	2	Unshrouded	Male Pin	3 A	2.54 çm	100 çin	Tin	Through Hole	Phosphor Bronze	125 °C	-65 ░C	70	2.54 mm	0.1 in	16.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.30
		10	$ 3.29
		100	$ 2.55
		500	$ 2.15
		1000	$ 2.03

Description

General part information

PEC35 Series

Connector Header Through Hole 35 position 0.100" (2.54mm)
