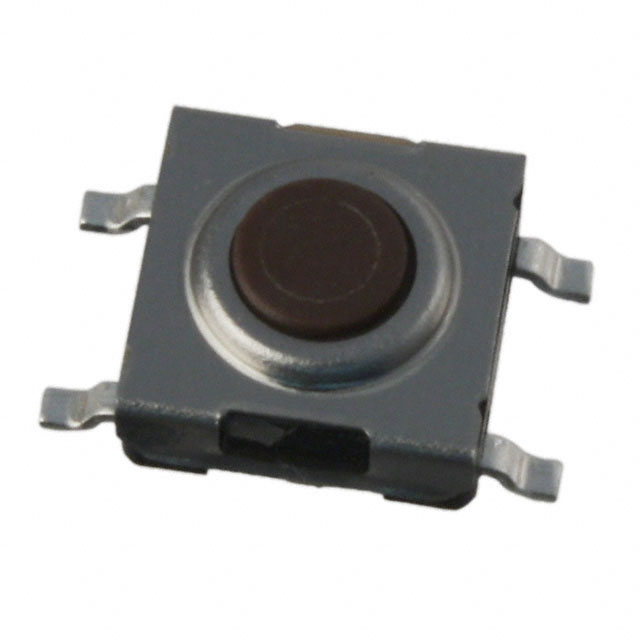

SWTW-G2NTR

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SWTW-G2NTR

Actuator Height off PCB, Vertical [z]	3.1 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6.3 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Outline [x]	Outline [y]	Illumination	Mechanical Life	Actuator Type	Contact Rating @ Voltage	Circuit	Mounting Type	Switch Function	Termination Style	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]
TT Electronics/BI SWTW-G2NTR	6.3 mm	6.2 mm	Non-Illuminated	100000 Cycles	Standard	0.05 A, 12 VDC	SPST-NO	Surface Mount	Off-Mom	Gull Wing	Top Actuated	3.1 mm	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
