Description
General part information

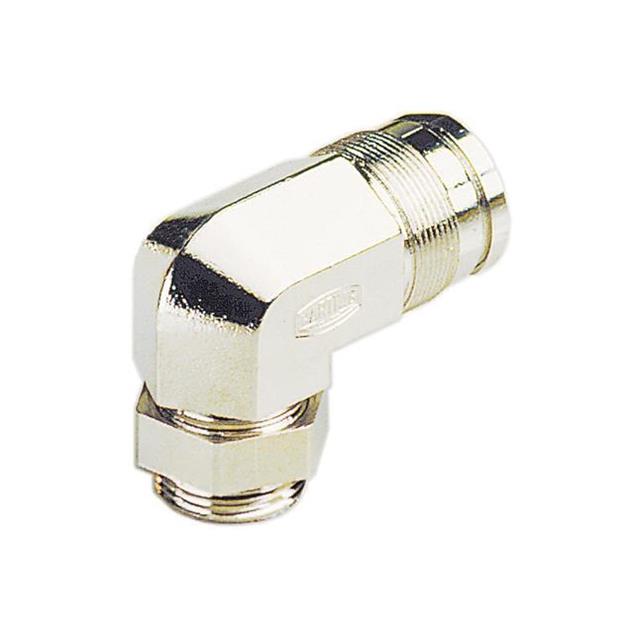

09150000122
Position Circular Connector Insert Shell Free Hanging (In-Line), Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 09150000122 |
|---|---|
| Connector Type | Insert Shell |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Note | Contacts Not Included, Insert Not Included |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Material | Zinc Die Cast |
| Shielding | Unshielded |
