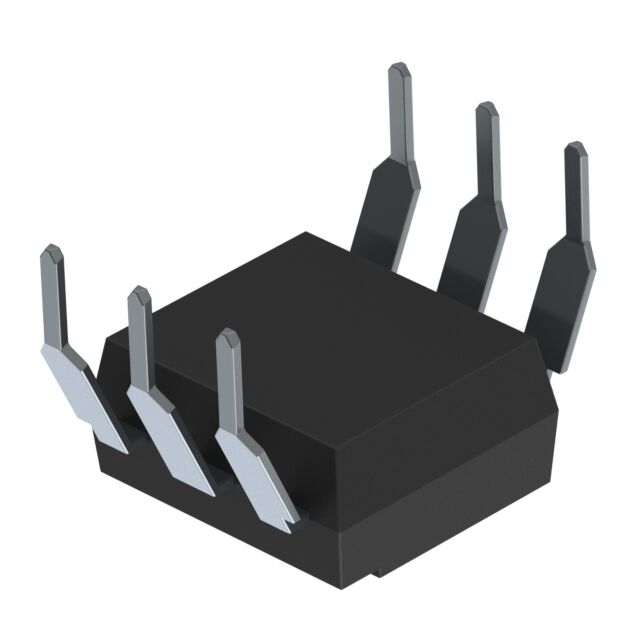

CNY17-2M

Active

Diodes Inc

OPTOISO 5KV TRANS W/BASE 6-DIP

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISO 5KV TRANS W/BASE 6-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	CNY17-2M

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	150 mA
Current Transfer Ratio (Max)	125 %
Current Transfer Ratio (Min) [Min]	63 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-DIP
Package / Case	10.16 mm
Package / Case	10.16 mm
Rise / Fall Time (Typ) [custom]	5 µs
Rise / Fall Time (Typ) [custom]	5 µs
Supplier Device Package	6-DIP
Vce Saturation (Max) [Max]	300 mV
Voltage - Forward (Vf) (Typ)	1.45 V
Voltage - Output (Max) [Max]	70 V

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Voltage - Output (Max) [Max]	Current Transfer Ratio (Max)	Vce Saturation (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Number of Channels	Input Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Output Type
Diodes Inc CNY17-2S	6-SMD	1.45 V	150 mA	70 V	125 %	300 mV	5 µs	5 µs	63 %	60 mA	1	DC	Surface Mount	100 °C	-55 °C	6-SMD Gull Wing
Diodes Inc CNY17-2M	6-DIP	1.45 V	150 mA	70 V	125 %	300 mV	5 µs	5 µs	63 %	60 mA	1	DC	Through Hole	100 °C	-55 °C	6-DIP	10.16 mm	10.16 mm
Diodes Inc CNY17-1S-TA1	6-SMD	1.45 V	150 mA	70 V	80 %	300 mV	5 µs	5 µs	40 %	60 mA	1	DC	Surface Mount	100 °C	-55 °C	6-SMD Gull Wing
Diodes Inc CNY17F-4S-TA1	6-SMD	1.45 V	150 mA	70 V	320 %	300 mV	5 µs	5 µs	160 %	60 mA	1	DC	Surface Mount	100 °C	-55 °C	6-SMD Gull Wing			1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
