009158024020001

Active

KYOCERA AVX

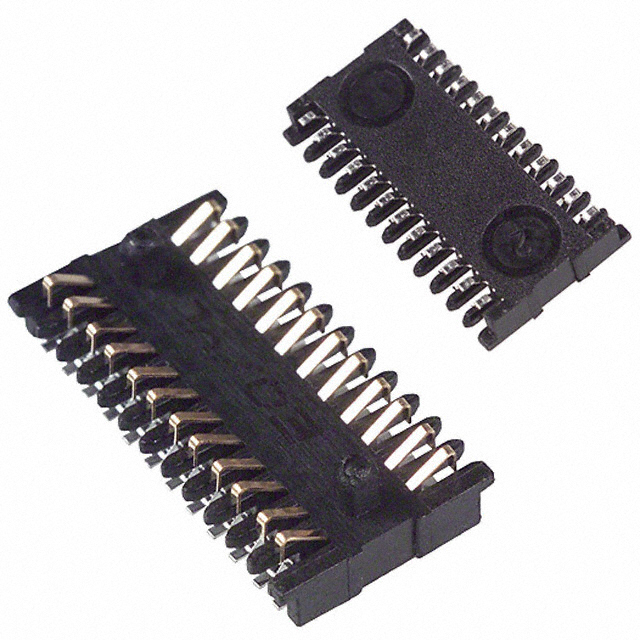

CONN STACKING 24POS SMD GOLD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN STACKING 24POS SMD GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1250	$ 0.82

General part information

24 Position Connector Stacking Compression Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN STACKING 24POS SMD GOLD

Part	Contact Finish	Features	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights [Max]	Mated Stacking Heights [Min]	Number of Positions	Number of Rows	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Number of Positions
KYOCERA AVX 009158024030001	Gold	Board Guide	0.039 in	1 mm	Surface Mount	3.3 mm	2.8 mm	24	2	0.106 in	2.7 mm	10 Áin	0.25 Ám
KYOCERA AVX 009158020020062	Gold		0.039 in	1 mm	Surface Mount	2.1 mm	1.9 mm	20	2			10 Áin	0.25 Ám	1.8 mm	0.071 in
KYOCERA AVX 009158028020001	Gold	Board Guide	0.039 in	1 mm	Surface Mount	2.1 mm	1.9 mm	28	2			10 Áin	0.25 Ám	1.8 mm	0.071 in
KYOCERA AVX 009158016020061	Gold	Board Guide	0.039 in	1 mm	Surface Mount	2.1 mm	1.9 mm		2			10 Ąin	0.25 Ąm	1.8 mm	0.071 in	16
KYOCERA AVX 009158016025062	Gold		0.039 in	1 mm	Surface Mount	2.7 mm	2.1 mm		2			10 Áin	0.25 Ám	1.8 mm	0.071 in	16
KYOCERA AVX 009158028025001	Gold	Board Guide	0.039 in	1 mm	Surface Mount	2.7 mm	2.1 mm	28	2			10 Áin	0.25 Ám	1.8 mm	0.071 in
KYOCERA AVX 009158028025062	Gold		0.039 in	1 mm	Surface Mount	2.7 mm	2.1 mm	28	2			10 Áin	0.25 Ám	1.8 mm	0.071 in
KYOCERA AVX 009158016030061	Gold	Board Guide	0.039 in	1 mm	Surface Mount	3.3 mm	2.8 mm		2	0.106 in	2.7 mm	10 Áin	0.25 Ám			16
KYOCERA AVX 009158020020001	Gold	Board Guide	0.039 in	1 mm	Surface Mount	2.1 mm	1.9 mm	20	2			10 Áin	0.25 Ám	1.8 mm	0.071 in
KYOCERA AVX 009158024020001	Gold	Board Guide	0.039 in	1 mm	Surface Mount	2.1 mm	1.9 mm	24	2			10 Áin	0.25 Ám	1.8 mm	0.071 in
