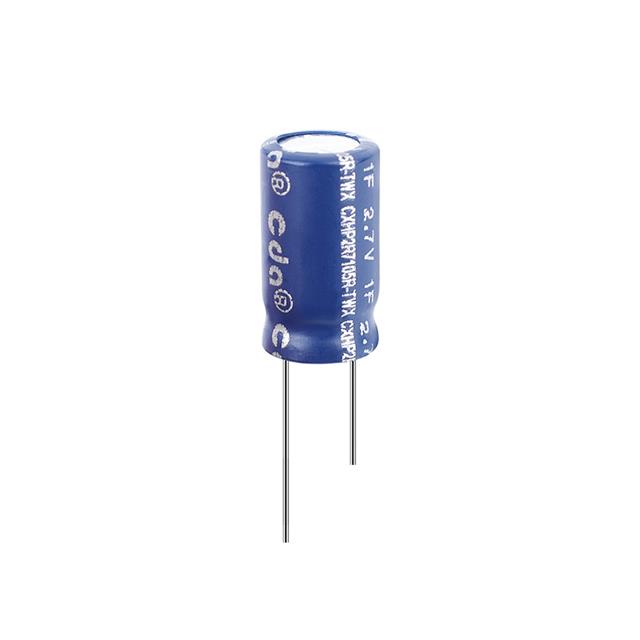

CXHP2R7105R-TWX
ActiveCDA (Zhifengwei Technology)
2.7V 1F 6.3*12 EDLC
CXHP2R7105R-TWX
ActiveCDA (Zhifengwei Technology)
2.7V 1F 6.3*12 EDLC
Description
General part information
CXHP2R7105R-TWX
1 F (EDLC) Supercapacitor 2.7 V Radial, Can 300mOhm @ 1kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | CXHP2R7105R-TWX |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 300 mOhm |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.098 in |
| Lifetime | 1500 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C, 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.248 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 2.7 VDC |
