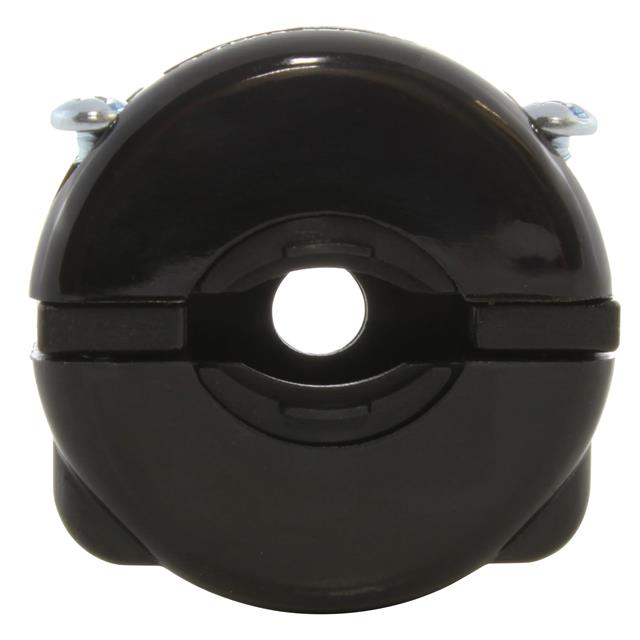

ASL620R-BK
ActiveAC Connectors
NEMA L6-20 20A 250V FEMALE - BLA
ASL620R-BK
ActiveAC Connectors
NEMA L6-20 20A 250V FEMALE - BLA
Description
General part information
ASL620R-BK
Power Connector Plug, Female Sockets NEMA L6-20R
Technical Specifications
Parameters and characteristics for this part
| Specification | ASL620R-BK |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA L6-20R |
| Connector Type | Female Sockets, Plug |
| Current Rating | 20 A |
| Features | Chemical Resistant, Weather Resistant, Impact Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating | 250 V |
