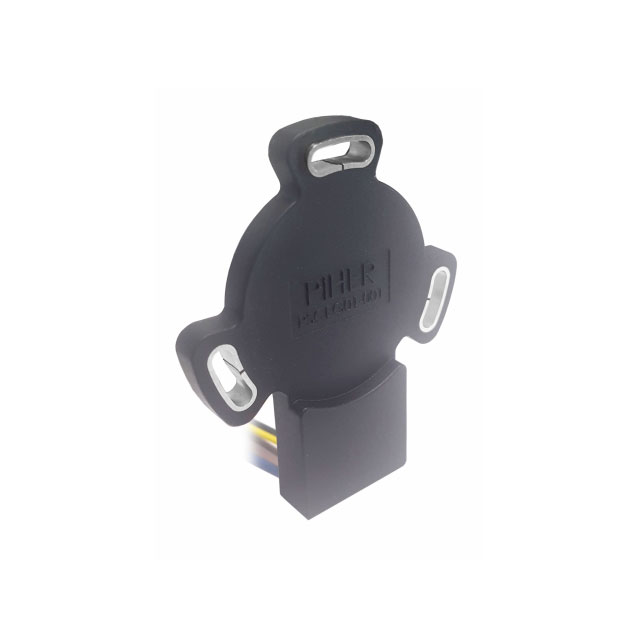

PSCI-6PP-05
ActiveAmphenol Piher Sensing Systems
INDUCTIVE HIGH SPEED ROTOR POSIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSCI-6PP-05
ActiveAmphenol Piher Sensing Systems
INDUCTIVE HIGH SPEED ROTOR POSIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSCI-6PP-05 |
|---|---|
| Actuator Type | External Magnet, Included |
| For Measuring | Rotary Position |
| Mounting Type | Chassis Mount |
| Output | PWM, Analog Voltage |
| Output Signal | Sine, Cosine |
| Package / Case | Box with Wire Leads |
| Technology | Inductive |
| Termination Style | Cable with Connector |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 61.60 | |
| 5 | $ 51.95 | |||
| 10 | $ 48.28 | |||
| 25 | $ 43.83 | |||
| 50 | $ 40.74 | |||
| 100 | $ 37.86 | |||
Description
General part information
PSCI-6PP Series
Inductive Sensor Rotary Position External Magnet, Included Cable with Connector
Documents
Technical documentation and resources
