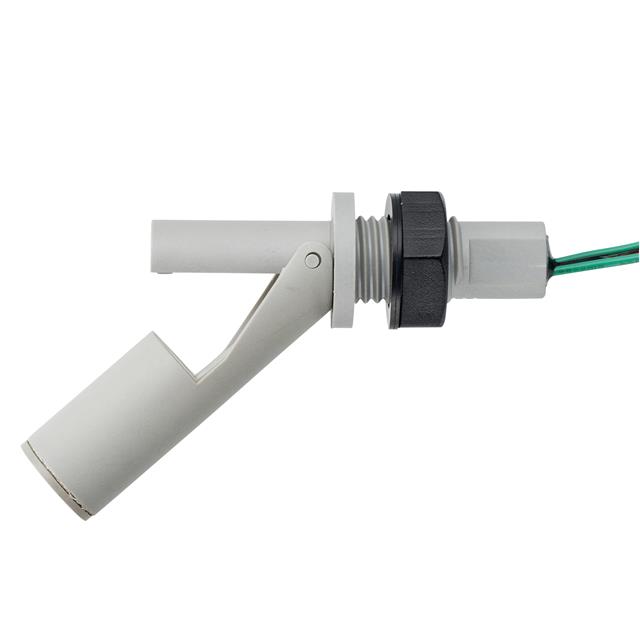

TSF46H050TG

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	TSF46H050TG

Current	1 A
Material - Housing & Prism	Polypropylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Switch Actuation Level	0.464 in, 0.354 in
Switch Actuation Level	20 mm, 9 mm
Type	Liquid, Temperature
Voltage Rating	300 VDC, 300 VAC

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Voltage Rating	Material - Housing & Prism	Minimum Liquid Specific Gravity [Min]	Output Configuration	Switch Actuation Level	Switch Actuation Level	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Current
Sensata Technologies TSF46H050TG	300 VDC, 300 VAC	Polypropylene Sulphide (PPS)	0.85	SPST-NC/NO	0.354 in, 0.464 in	9 mm, 20 mm	-10 °C	120 °C	Liquid, Temperature	M16x2 Thread, Panel Mount	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.17

General part information

Liquid, Temperature Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
