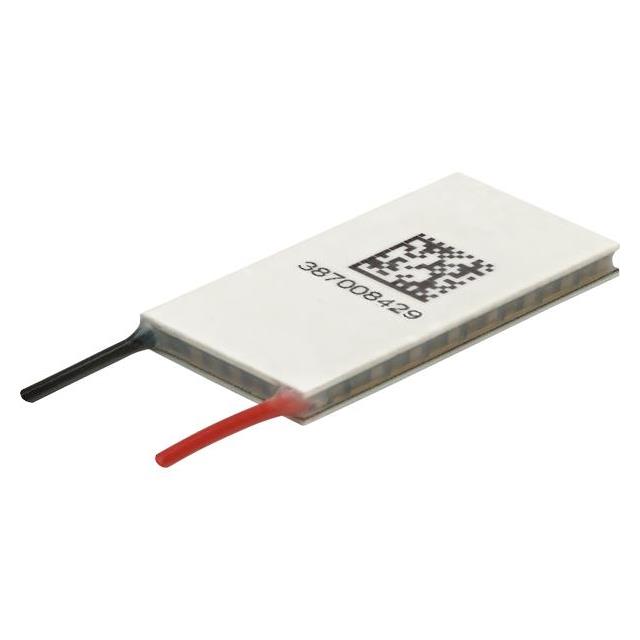

387008429
ActiveLaird Thermal Systems, Inc.
PCX10,233,F1,3172,TA,RT,W6
387008429
ActiveLaird Thermal Systems, Inc.
PCX10,233,F1,3172,TA,RT,W6
Description
General part information
387008429
Peltier Module 155.7W @ 27°C 10.3 A 120°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 387008429 |
|---|---|
| Current - Max | 10.3 A |
| Delta Tmax | 73.6 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 3.6 mm |
| Maximum Power Dissipation (Qmax) | 155.7 W |
| Number of Stages | 1 |
| Operating Temperature | 120 °C |
| Resistance | 2.38 Ohms |
| Size / Dimension Length | 72 mm |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 31 mm |
| Voltage - Max | 26.1 V |
