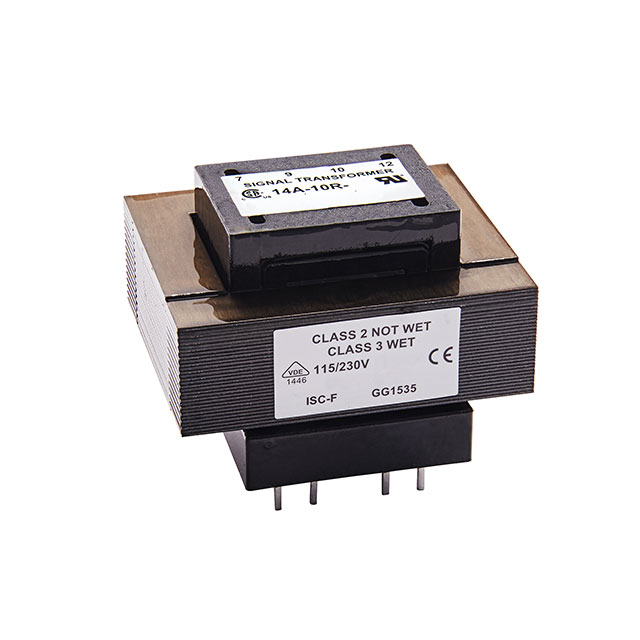

14A-56-512
ActiveSignal Transformer
PWR XFMR LAMINATED 56VA TH
14A-56-512
ActiveSignal Transformer
PWR XFMR LAMINATED 56VA TH
Description
General part information
14A-56-512
PWR XFMR LAMINATED 56VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | 14A-56-512 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) Options | 300mA, 3A |
| Height - Seated (Max) | 46 mm |
| Mounting Type | Through Hole |
| Power - Max | 56 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 76.2 mm |
| Size / Dimension Width | 2.5 in |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) | ±12V, 5V |
| Voltage - Secondary (Full Load) | 5 V |
| Voltage - Secondary (Full Load) (±) | 12 V |
| Weight | 1.7 lbs |
