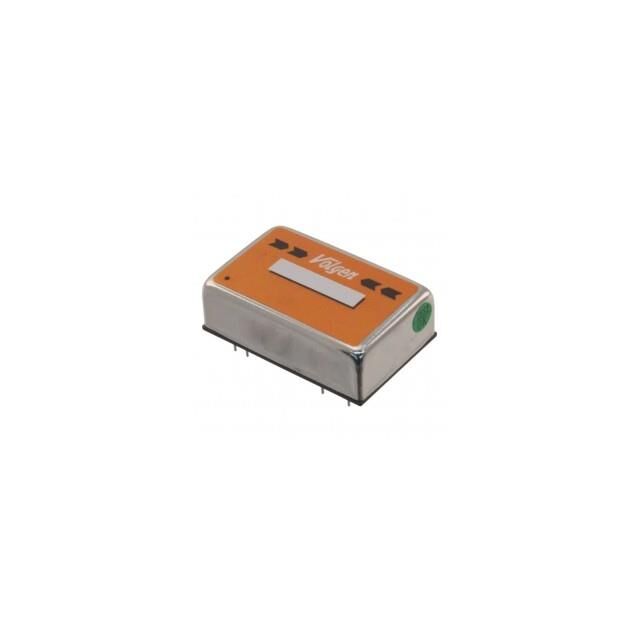

MT12A-1212SI

Active

Volgen + Furuno

DC DC CONVERTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MT12A-1212SI

Active

Volgen + Furuno

DC DC CONVERTER 12V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 39.69

Description

General part information

MT12A Series

Isolated Module DC DC Converter 1 Output 12V 1A 9V - 18V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MT12A-1212SI	MT12A Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max)	-	400 - 500 mA
Current - Output (Max)	-	500 mA
Current - Output (Max)	-	400 mA
Current - Output (Max)	-	1.2 A
Current - Output (Max)	-	1.2 A
Current - Output (Max) [Max]	1 A	1 - 3.5 A
Efficiency	86 %	83 - 88 %
Features	OVP, OCP, Remote On/Off, SCP	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	9 PC Pad	9 PC Pad
Package / Case	24-DIP Module	24-DIP Module
Power (Watts)	12 W	12 W
Size / Dimension [x]	31.8 mm	31.8 mm
Size / Dimension [x]	1.25 "	1.25 "
Size / Dimension [y]	0.8 in	0.8 in
Size / Dimension [y]	20.3 mm	20.3 mm
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.2 mm	10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	18 - 75 V
Voltage - Input (Min) [Min]	9 V	9 - 36 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	12 V	2.5 - 15 V
Voltage - Output 2	-	-15 - -5 V

MT12A Series

DC DC CONVERTER 3.3V 12W

Part	Voltage - Input (Min) [Min]	Applications	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Control Features	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Efficiency	Voltage - Isolation	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Volgen + Furuno MT12A-2433SI	18 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3.3 V	3.5 A	36 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	1	85 %	1.6 kV
Volgen + Furuno MT12A-4812SI	36 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V	1 A	75 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	1	87 %	1.6 kV
Volgen + Furuno MT12A-2405SI	18 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	5.1 V	2.4 A	36 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	1	87 %	1.6 kV
Volgen + Furuno MT12A-2412WI	18 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V		36 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	2	88 %	1.6 kV	-12 V	500 mA	500 mA
Volgen + Furuno MT12A-1215WI	9 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	15 V		18 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	2	87 %	1.6 kV	-15 V	400 mA		400 mA
Volgen + Furuno MT12A-2405WI	18 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	5 V		36 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	2	83 %	1.6 kV	-5 V				1.2 A	1.2 A
Volgen + Furuno MT12A-4833SI	36 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	3.3 V	3.5 A	75 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	1	85 %	1.6 kV
Volgen + Furuno MT12A-2425SI	18 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2.5 V	3.5 A	36 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	1	83 %	1.6 kV
Volgen + Furuno MT12A-1212WI	9 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V		18 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	2	87 %	1.6 kV	-12 V	500 mA	500 mA
Volgen + Furuno MT12A-4825SI	36 V	ITE (Commercial)	9 PC Pad	24-DIP Module	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2.5 V	3.5 A	75 V	12 W	Active High, Enable	OCP, OVP, Remote On/Off, SCP	Isolated Module	85 °C	-40 °C	Through Hole	1	83 %	1.6 kV
