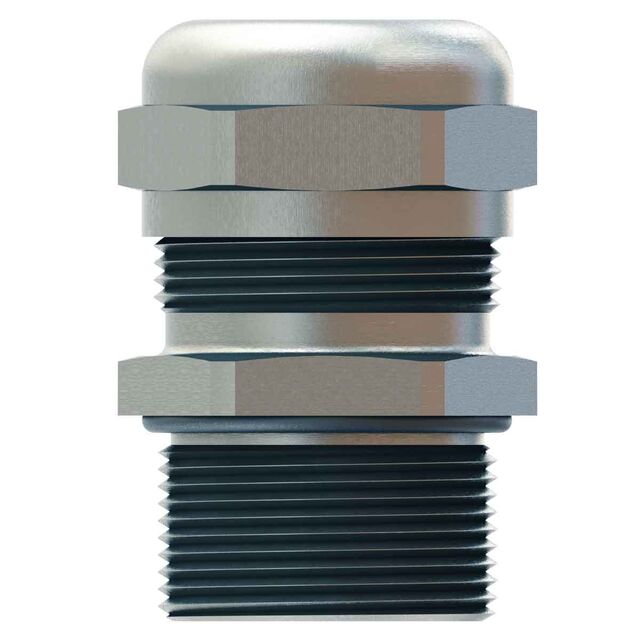

MPS-16L

Active

SAB North America

CABLE GLAND 10-14MM PG16 BRASS

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 10-14MM PG16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	MPS-16L

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm
Panel Hole Size	0.886 in
Panel Hole Size	22.5 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG16
Type	Cable Gland

CABLE GLAND 10-14MM PG16 BRASS

Part	Material	Thread Size	Color	Ingress Protection	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Type	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
SAB North America MPS-16L	Brass, Nickel Plated	PG16	Silver	IP68 - Dust Tight, Waterproof	10 mm	0.394 in	100 °C	-20 C	14 mm	0.551 "	Cable Gland	0.886 in	22.5 mm	0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG16 Silver
