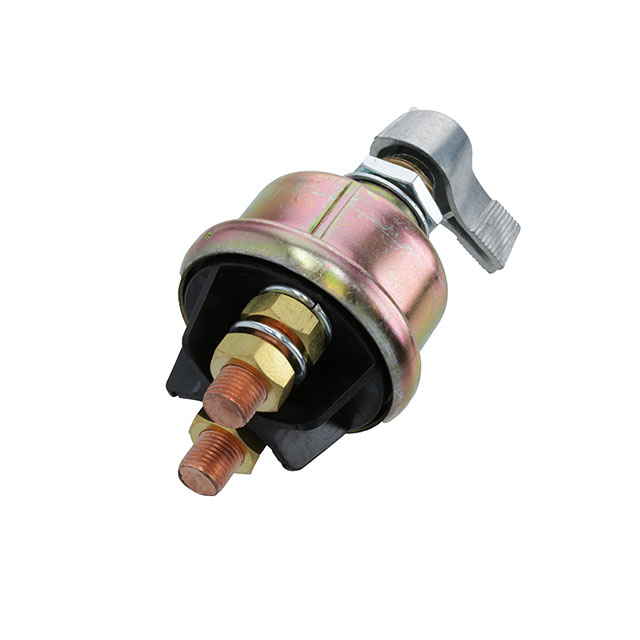

HDB2-1A-3-A1

Active

Switch Components

SWITCH SELECT 2POS SPST 300A 24V

Search across all available documentation for this part.

Active

Switch Components

SWITCH SELECT 2POS SPST 300A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	HDB2-1A-3-A1

Circuit	SPST
Current Rating (Amps)	300 A
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	18.6 mm
Switch Function	On-Off
Termination Style	Stud
Type	Battery Disconnect
Voltage Rating - DC	24 V

SWITCH SELECT 2POS SPST 300A 24V

Part	Ingress Protection	Panel Cutout Dimensions [diameter]	Switch Function	Type	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Illumination	Circuit	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
Switch Components HDB2-1A-3-A1	IP67 - Dust Tight, Waterproof	18.6 mm	On-Off	Battery Disconnect	24 V	300 A	Stud	Non-Illuminated	SPST	2	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position SPST 300A (DC) Panel Mount
