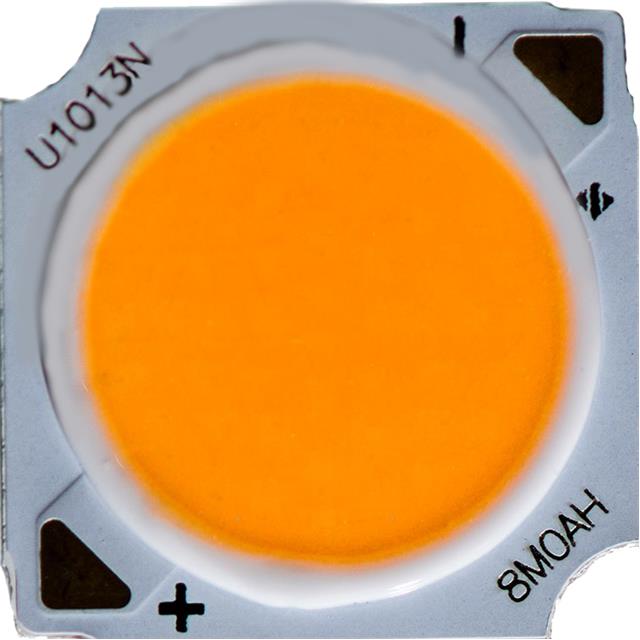

CMU1013-0000-000N0H0A30G
ActiveCree LED
LED XLAMP WARM WHT 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMU1013-0000-000N0H0A30G
ActiveCree LED
LED XLAMP WARM WHT 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMU1013-0000-000N0H0A30G |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 960 mA |
| Current - Test | 360 mA |
| Flux @ 85°C, Current - Test | 1879 lm |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Lumens/Watt @ Current - Test | 155 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 13.5 mm |
| Size / Dimension [x] | 0.531 in |
| Size / Dimension [y] | 0.531 in |
| Size / Dimension [y] | 13.5 mm |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 33.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 2.41 | |
Description
General part information
CMU1013-0000-000N0H0A30G
LED Lighting XLamp® CMU1013 White, Warm 3000K 3-Step MacAdam Ellipse 33.7V 360mA 115° 2-SMD, No Lead
