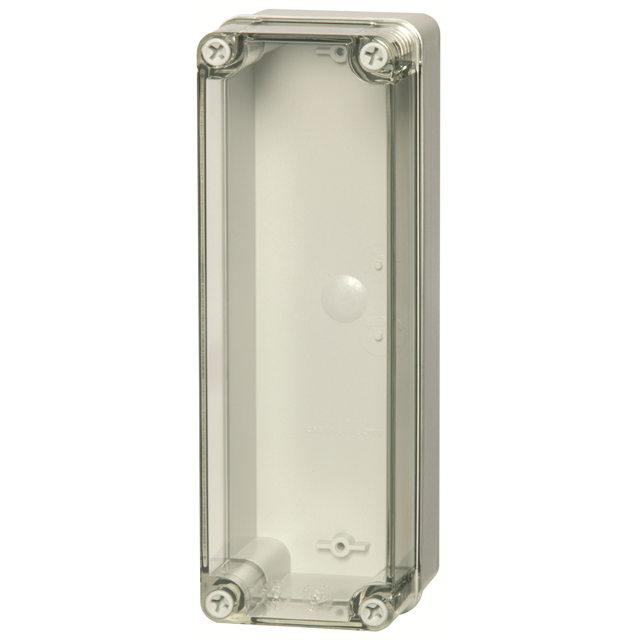

UL PC D 85 T

Active

FIBOX Enclosures

BOX PLASTIC 6.7"L X 3.1"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLASTIC 6.7"L X 3.1"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UL PC D 85 T	UL PC D Series

Area (L x W)	20.8 in˛	20.8 in˛
Area (L x W)	134 cm˛	134 cm˛
Color	Gray, Clear Cover/Door	Gray, Clear Cover/Door
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	83.82 mm	66.04 - 83.82 mm
Height [z]	3.3 in	3.3 - 66.04 in
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Ratings	IP67, IP66, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, UL 508, NEMA 13	IP67, IP66, UL 508, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, NEMA 13
Size / Dimension [x]	6.7 in	6.7 in
Size / Dimension [x]	170.18 mm	170.18 mm
Size / Dimension [y]	78.74 mm	78.74 mm
Size / Dimension [y]	3.1 in	3.1 in

BOX PLAS GRAY 6.700"L X 3.100"W

Part	Material	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Area (L x W)	Area (L x W)	Design	Height [z]	Height [z]	Color
FIBOX Enclosures UL PC D 85 G	Plastic, Polycarbonate	IP66, IP67, UL 508	78.74 mm	6.7 in	3.1 in	170.18 mm	Box	134 cm˛	20.8 in˛	Cover Included	83.82 mm	3.3 in	Gray
FIBOX Enclosures UL PC D 85 T	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	78.74 mm	6.7 in	3.1 in	170.18 mm	Box	134 cm˛	20.8 in˛	Cover Included	83.82 mm	3.3 in	Clear Cover/Door, Gray
FIBOX Enclosures UL PC D 65 G	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	78.74 mm	6.7 in	3.1 in	170.18 mm	Box	134 cm˛	20.8 in˛	Cover Included	66.04 mm	66.04 mm	Gray
FIBOX Enclosures UL PC D 65 T	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	78.74 mm	6.7 in	3.1 in	170.18 mm	Box	134 cm˛	20.8 in˛	Cover Included	66.04 mm	66.04 mm	Clear Cover/Door, Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 78.39

General part information

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 6.700" L x 3.100" W (170.18mm x 78.74mm) X 3.300" (83.82mm)

Technical documentation and resources

No documents available
