1102874-1
ActiveTE Connectivity AMP Connectors

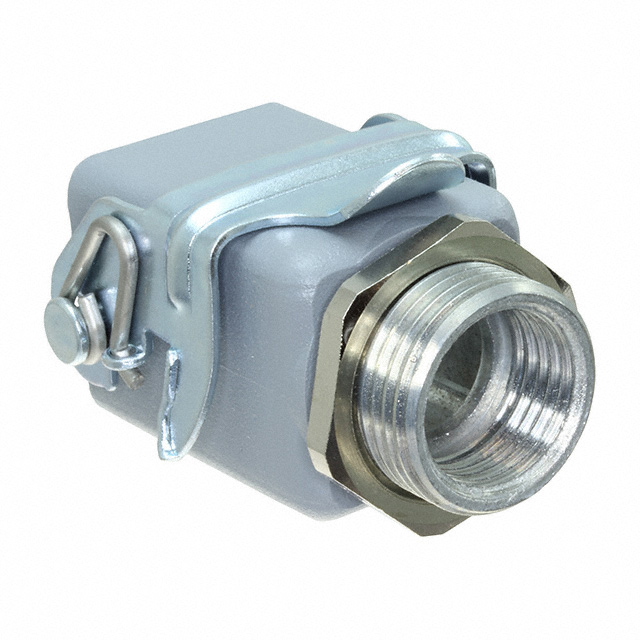

CONN BASE BOTTOM ENTRY SIZE 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1102874-1 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Material | Zinc, Die Cast |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | 1 Gallon |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 24 mm |
| Size / Dimension [y] | 0.945 in |
| Size / Dimension [z] | 1.811 in |
| Size / Dimension [z] | 46 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 34.59 | |
1102874 Series
CONN BASE BOTTOM ENTRY SIZE 1
| Part | Size | Housing Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Connector Type | Lock Location | Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1102874-1 | 1 Gallon | Zinc, Die Cast | 0.945 in | 24 mm | 0.945 in | 1.811 in | 46 mm | 24 mm | Base - Panel Mount | Locking Clip (1) on Base Bottom | Bottom Entry | Gray |
Description
General part information
1102874 Series
Base - Panel Mount Connector Bottom Entry 1
