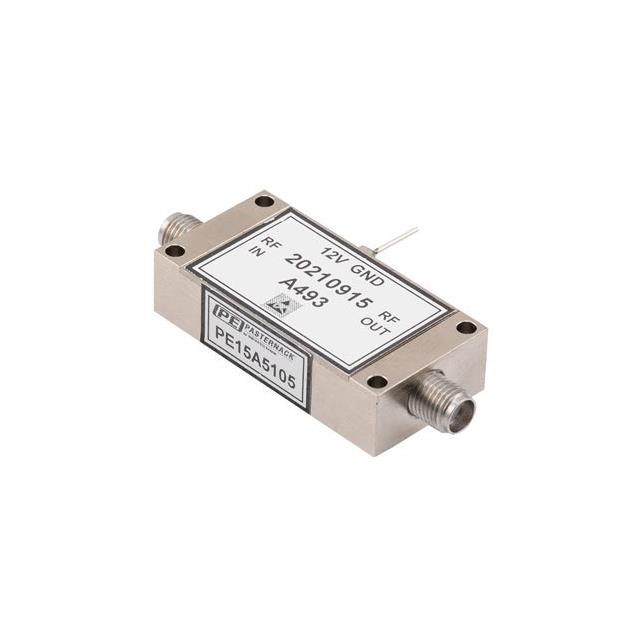

PE15A5105
ActivePasternack
TEMPERATURE COMPENSATED LOW NOIS
PE15A5105
ActivePasternack
TEMPERATURE COMPENSATED LOW NOIS
Description
General part information
PE15A5105
RF Amplifier IC General Purpose 4GHz ~ 12GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A5105 |
|---|---|
| Current - Supply | 350 mA |
| Frequency (Max) | 12 GHz |
| Frequency (Min) | 4 GHz |
| Gain | 40 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3.5 dB |
| P1dB | 22 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 12 VDC |
