TA4MSHF

Active

Switchcraft Inc.

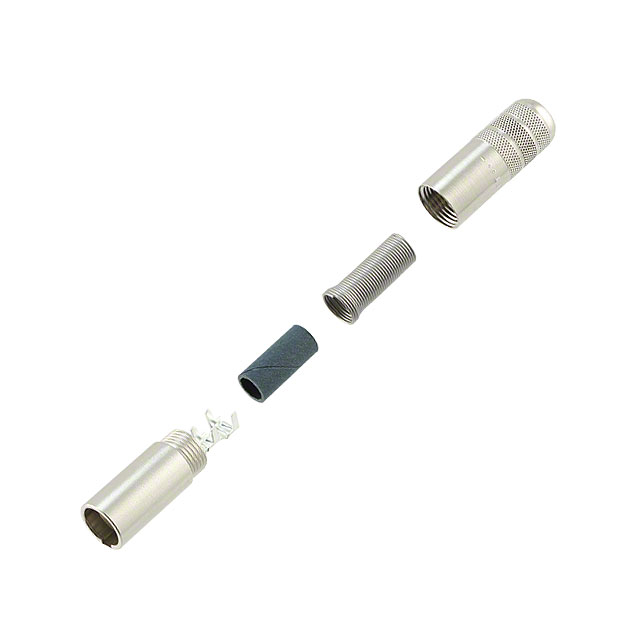

CONN RCPT MALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA4MSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN RCPT MALE MINI XLR 4P SLDR

Part	Orientation	Color	Primary Material	Connector Type	Contact Material	Voltage Rating	Shielding	Material Flammability Rating	Current Rating (Amps)	Shell Material	Shell Finish	Insert Material	Features	Fastening Type	Backshell Material, Plating	Mounting Type	Number of Positions	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Applications
Switchcraft Inc. TA4MSHF	Keyed	Silver	Metal	Male Pins, Receptacle	Copper Alloy	125 VAC	Shielded	UL94 V-0	5 A	Copper Alloy	Nickel	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	Latch Lock	Copper Alloy, Nickel	Free Hanging (In-Line)	4	Silver	85 °C	-55 °C	Mini XLR	Audio, Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
