Specification	0439151111

Applications	Telecommunications, Industrial, General Purpose, Automotive, Medical
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Length - Post	0.201 in
Contact Material	Copper Zirconium Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	0.827 in
Insulation Material	Glass Filled, Nylon 4/6, Polyamide (PA46)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.394 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

043915 Series

Part	Applications	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Pitch - Mating	Insulation Material	Contact Type	Number of Positions Loaded	Termination	Contact Length - Post	Contact Finish - Post	Mounting Type	Contact Material	Fastening Type	Style	Shrouding	Contact Shape	Connector Type	Features	Material Flammability Rating	Number of Rows	Insulation Height	Insulation Color
Molex 0439151411	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Silver	6	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide Board Lock	UL94 V-0	2	0.827 in	Black
Molex 0439151113	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Tin	10	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide	UL94 V-0	2	0.827 in	Black
Molex 0439151109	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Tin	12	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide	UL94 V-0	2	0.827 in	Black
Molex 0439151409	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Silver	12	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide Board Lock	UL94 V-0	2	0.827 in	Black
Molex 0439151105	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Tin	14	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.138 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide	UL94 V-0	2	0.827 in	Black
Molex 0439151204	Automotive General Purpose Industrial Medical Telecommunications	30 µin	Gold	12	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.138 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide	UL94 V-0	2	0.827 in	Black
Molex 0439151405	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Silver	14	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.138 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide Board Lock	UL94 V-0	2	0.827 in	Black
Molex 0439151212	Automotive General Purpose Industrial Medical Telecommunications	30 µin	Gold	8	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide	UL94 V-0	2	0.827 in	Black
Molex 0439151209	Automotive General Purpose Industrial Medical Telecommunications	30 µin	Gold	12	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide	UL94 V-0	2	0.827 in	Black

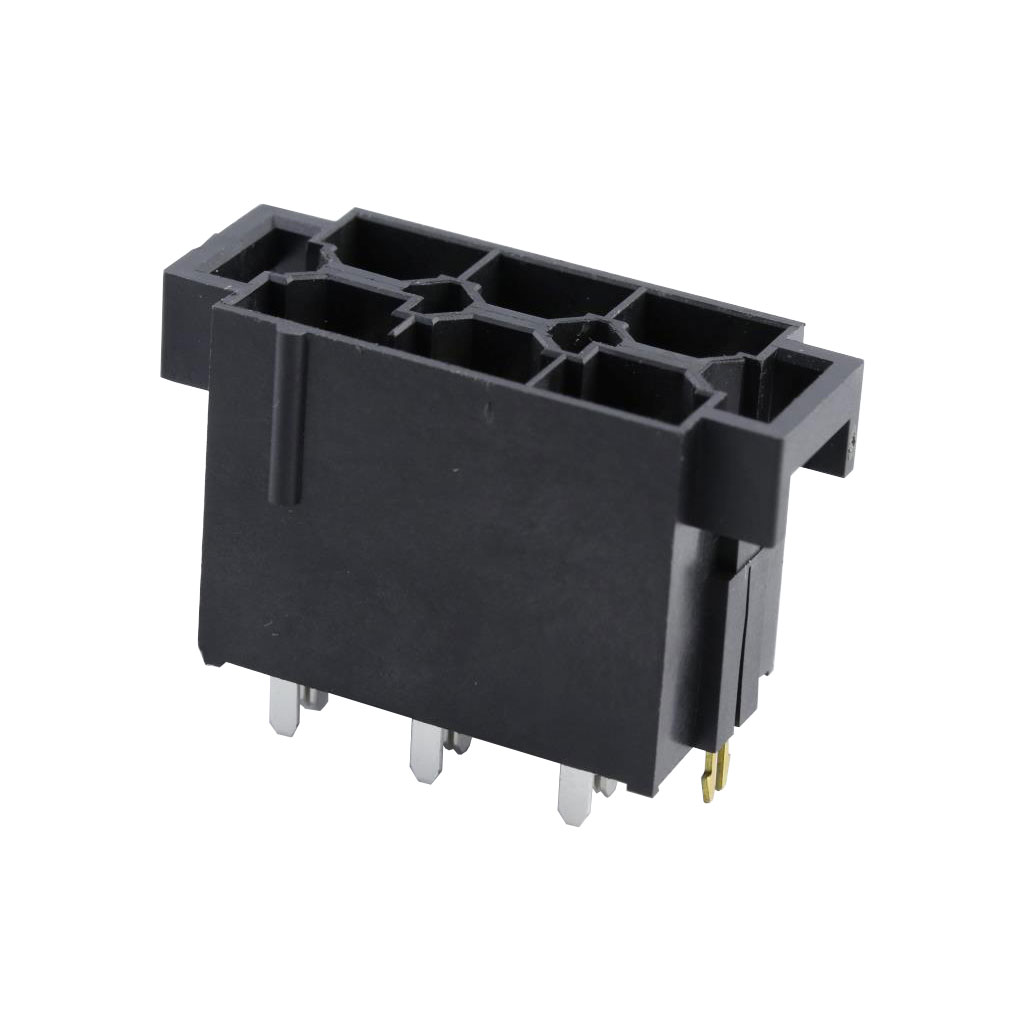

Molex 0439151406	Automotive General Purpose Industrial Medical Telecommunications	100 µin	Silver	6	0.394 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Male Pin	All	Solder	0.201 in	Tin	Through Hole	Copper Zirconium Alloy	Latch Holder	Board Cable/Wire	Shrouded - 4 Wall	Rectangular	Header	Board Guide Board Lock	UL94 V-0	2	0.827 in	Black
