ISP26DP06NMSATMA1
ActiveP-CHANNEL SMALL SIGNAL MOSFET -60 V ; SOT223-3 PACKAGE; 260 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
ISP26DP06NMSATMA1
ActiveP-CHANNEL SMALL SIGNAL MOSFET -60 V ; SOT223-3 PACKAGE; 260 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISP26DP06NMSATMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1.9 A |
| Drain to Source Voltage (Vdss) | 60 V |
| FET Type | P-Channel |
| Mounting Type | Surface Mount |
| Package / Case | TO-261AA, TO-261-4 |

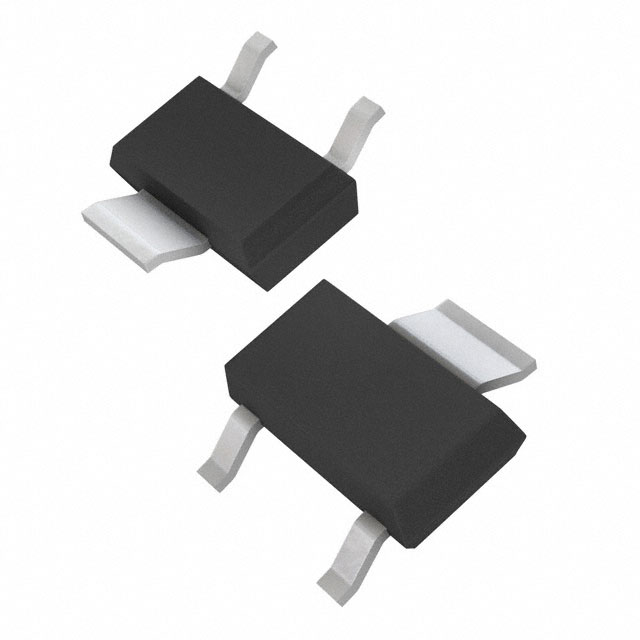

| Supplier Device Package | PG-SOT223 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.13 | |||
| 21000 | $ 0.13 | |||
| 30000 | $ 0.12 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.63 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
Description
General part information
ISP26DP06 Series
OptiMOS™ P-channel small signal MOSFETs60V in SOT-223 package is the new technology targeted forconsumer applications. The main advantage of a P-channel small signal device is the reduction of design complexity in medium and low power applications. Enabling fast switching, avalanche ruggedness and an easy interface to microcontroller unit (MCU), also featuring a very low on-resistance RDS(on).It is available in logic level.
