SSTC 3
ObsoleteBel Fuse Inc.
FUSE BRD MNT 3A 125VAC/VDC 2SMD
SSTC 3
ObsoleteBel Fuse Inc.
FUSE BRD MNT 3A 125VAC/VDC 2SMD
Description
General part information
SSTC 3

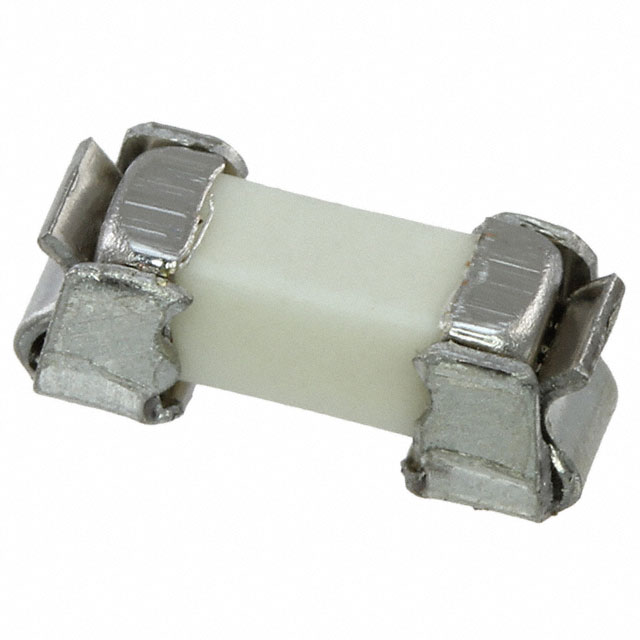

3 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Requires Holder, Surface Mount 2-SMD, Square End Block with Clip
Technical Specifications
Parameters and characteristics for this part
| Specification | SSTC 3 |
|---|---|
| Breaking Capacity | 50 A |
| Current Rating | 3 A |
| DC Cold Resistance | 0.032 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 14 |
| Mounting Type | Surface Mount, Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, Square End Block with Clip |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.115 in |
| Size / Dimension Length | 0.33 in |
| Size / Dimension Width | 0.128 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
