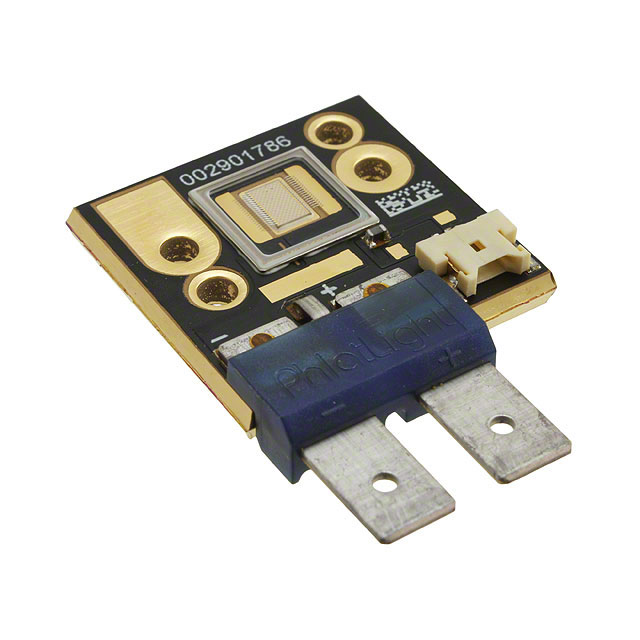

LED MOD PT-120 BLUE RECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT-120-B-L11-EPF
ObsoleteLuminus Devices Inc.
LED MOD PT-120 BLUE RECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT-120-B-L11-EPF |
|---|---|
| Color | Blue |
| Configuration | Rectangle |
| Current - Max [Max] | 27 A |
| Current - Test | 18 A |
| Features | With Connector |
| Height [z] | 5.7 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [x] | 2.6 mm |
| Light Emitting Surface (LES) [y] | 4.6 mm |
| Lumens/Watt @ Current - Test | 15 lm/W |
| Luminous Flux @ Current/Temperature | 1050 lm |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 42 mm |
| Temperature - Test | 40 °C |
| Type | LED Module |
| Voltage - Forward (Vf) (Typ) | 3.9 V |
| Wavelength | 462 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PT-120-B-L11-EPF
LED Lighting COBs Engines Modules LED Module PT-120 Blue Rectangle
