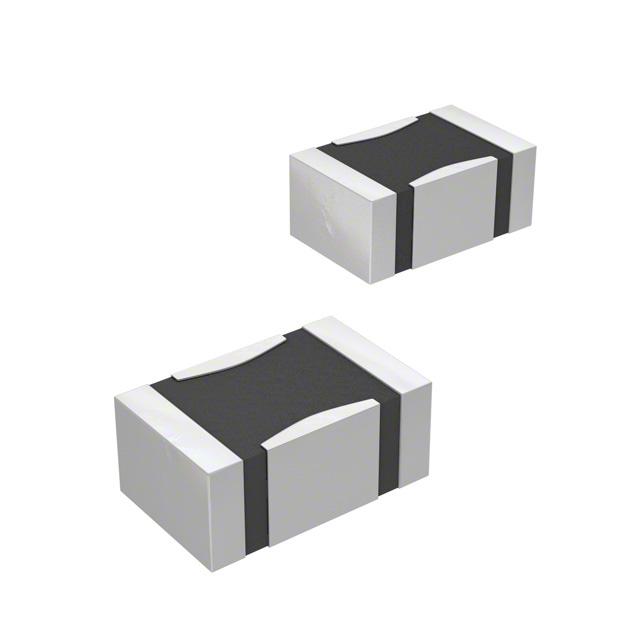

YNA21B2J0G106M
ObsoleteTDK Corporation
CAP CER 10UF 4V X5R 0805
YNA21B2J0G106M
ObsoleteTDK Corporation
CAP CER 10UF 4V X5R 0805
Description
General part information
YNA21B2J0G106M
10 µF ±20% 4V Ceramic Capacitor X5R 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | YNA21B2J0G106M |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Features | Controlled ESR |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.039 in |
| Tolerance | 20 % |
| Voltage - Rated | 4 V |
