Description
General part information
16111705207000

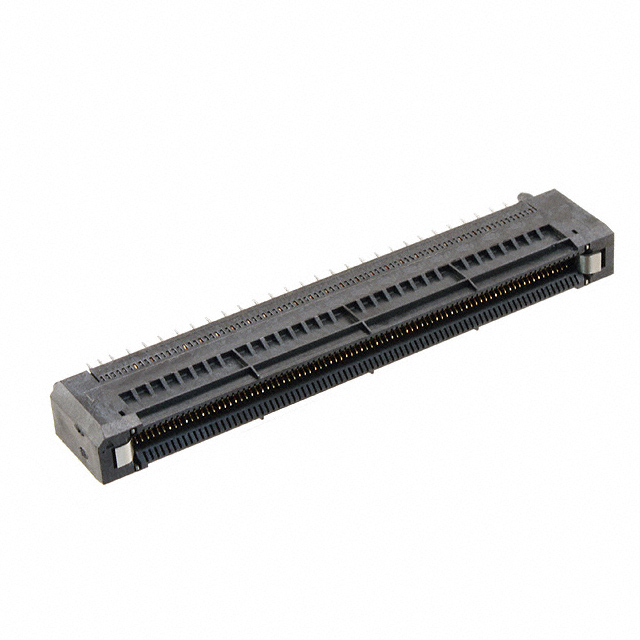

170 Connector Header, Male Pins Through Hole Black AdvancedMC
Technical Specifications
Parameters and characteristics for this part
| Specification | 16111705207000 |
|---|---|
| Color | Black |
| Connector Style | AdvancedMC |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane-to-Daughtercard |
| Contact Finish | Gold |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 170 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.029 in |
| Termination | Press-Fit |
