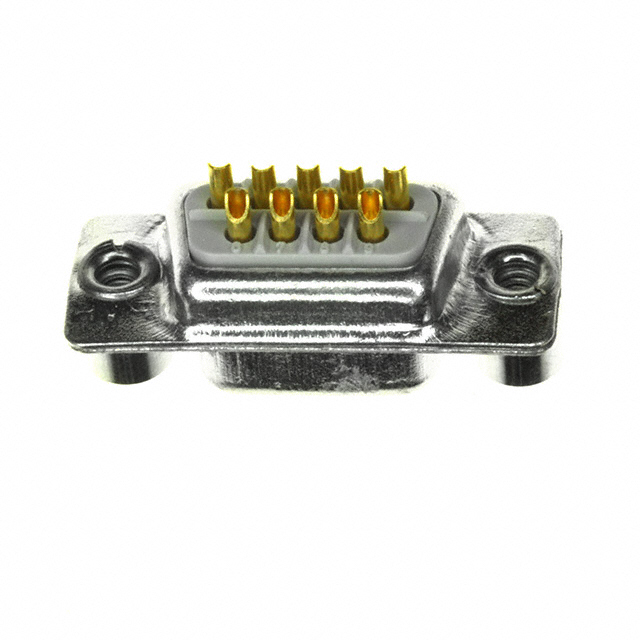

172-009-202R031
ObsoleteMH Connectors
CONN D-SUB RCPT 9POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
172-009-202R031
ObsoleteMH Connectors
CONN D-SUB RCPT 9POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 172-009-202R031 |
|---|---|
| Color | Beige |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
172-009-202R031
9 Position D-Sub Receptacle, Female Sockets Connector
