51-295.022D

Active

EAO

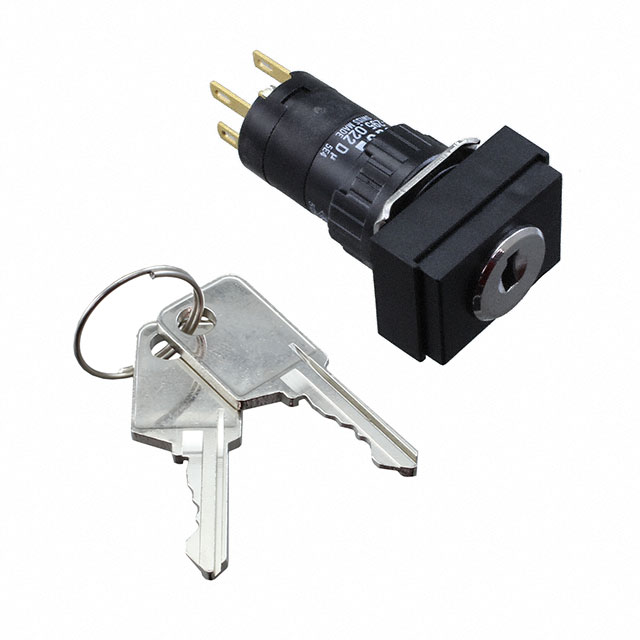

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-295.022D	51-295 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	5 A	5 A
Depth Behind Flange	36 mm	26.5 - 36 mm
Features	IP65	IP65
Key Removable Positions	1 only	1 only
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Voltage Rating - AC	250 V	250 V

SWITCH KEYLOCK 2POS DPST 5A 250V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Angle of Throw	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Termination Style	Termination Style	Switch Function	Voltage Rating - AC	Current Rating (Amps)	Key Removable Positions	Depth Behind Flange	Features	Number of Positions	Contact Timing	Circuit
EAO 51-295.022D	55 °C	-25 °C	90 °	16 mm	Flat Key	0.11 in	Quick Connect, Solder	2.8 mm	Off-On, On-Off	250 V	5 A	1 only	36 mm	IP65	2	Not Specified	DPST-NO/NC
EAO 51-295.025D	55 °C	-25 °C	90 °	16 mm	Flat Key	0.11 in	Quick Connect, Solder	2.8 mm	Off-On, On-Off	250 V	5 A	1 only	26.5 mm	IP65	2	Not Specified	DPST-NO/NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
