EHRRSLBPKG
ActiveSwitchcraft Inc.

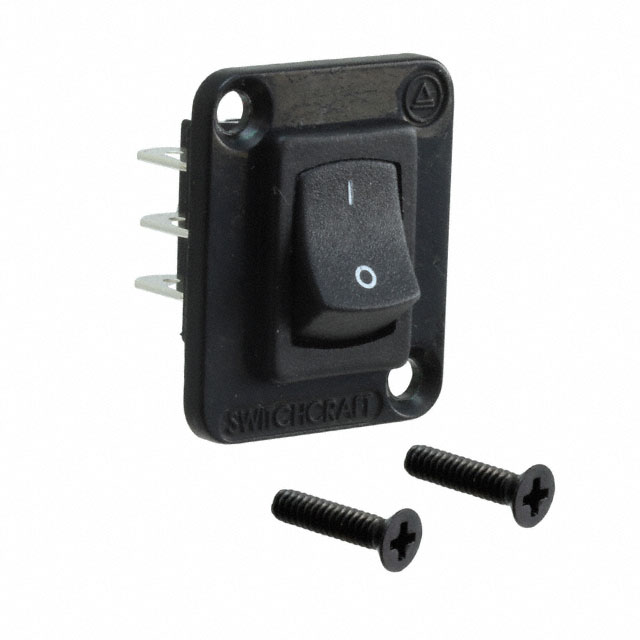

ROCKER SWITCHES CURVED ROCKER SWITCH I/O DPDT BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHRRSLBPKG
ActiveSwitchcraft Inc.
ROCKER SWITCHES CURVED ROCKER SWITCH I/O DPDT BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHRRSLBPKG | EHRRSL Series |
|---|---|---|
| Actuator Marking | O - | O - |
| Actuator Type | Concave (Curved) | Concave (Curved) |
| Circuit | DPDT | DPDT |
| Color - Actuator/Cap | Black | Black |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Termination Style | Solder Lug | Solder Lug |
EHRRSL Series
DPDT ROCKER SWITCHES ROHS
| Part | Actuator Type | Termination Style | Circuit | Actuator Marking | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|
Switchcraft Inc. EHRRSLB | Concave (Curved) | Solder Lug | DPDT | O - | Flange, Panel Mount | Black |
Switchcraft Inc. EHRRSLPKG | Concave (Curved) | Solder Lug | DPDT | O - | Flange, Panel Mount | |
Switchcraft Inc. EHRRSLBPKG | Concave (Curved) | Solder Lug | DPDT | O - | Flange, Panel Mount | Black |
Switchcraft Inc. EHRRSL | Concave (Curved) | Solder Lug | DPDT | O - | Flange, Panel Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EHRRSL Series
Rocker Switch DPDT Panel Mount, Flange
