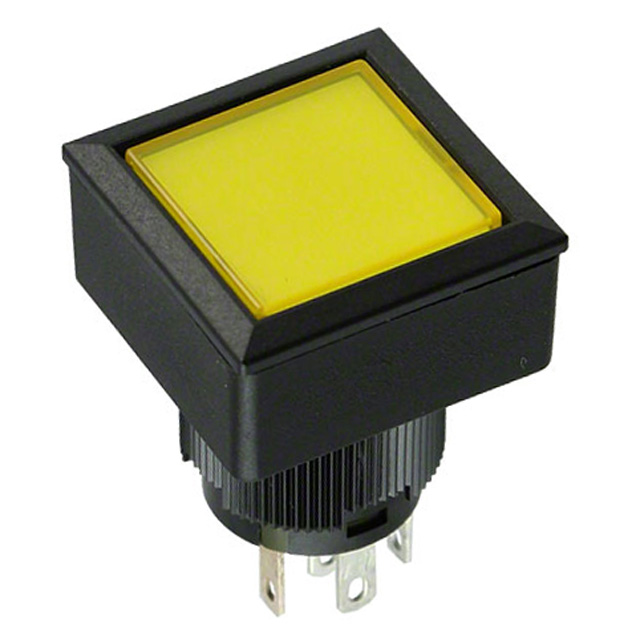

YB216CWSKW01-5D24-EB
ActiveNKK Switches
SWITCH PUSHBUTTON SPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB216CWSKW01-5D24-EB
ActiveNKK Switches
SWITCH PUSHBUTTON SPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB216CWSKW01-5D24-EB |
|---|---|
| Actuator Marking | No Marking |
| Circuit | SPDT |
| Color - Actuator/Cap | Yellow (White Filter/Diffuser) |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Tactile Feedback |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 21 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YB216CWSKW01-5D24-EB
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
