Description
General part information
09670250426

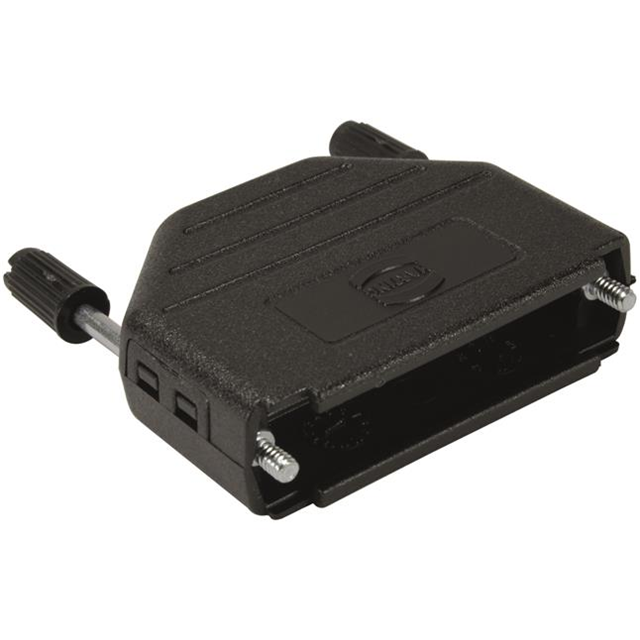

25 Position Hinged Backshell Connector Black 180° Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | 09670250426 |
|---|---|
| Accessory Type | Hinged Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | 25pos, HD44pos |
| Compatible Shell Size | B |
| Features | Mating Screws M3, Locking |
| Hardware | Grommets, Cable Clamp |
| Material | Thermoplastic |
| Number of Positions | 25 |
| Primary Material | Plastic |
| Shielding | Unshielded |
