MS3122E-16-26P
ActiveAmphenol Industrial Operations

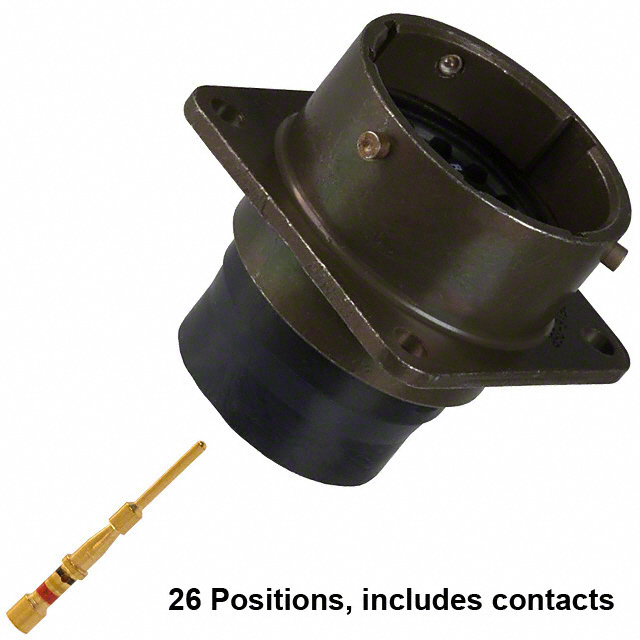

CONN RCPT MALE 26POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3122E-16-26P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 26POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3122E-16-26P | MS3122E16 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets, Receptacle Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 20 |
| Contact Type | - | Crimp |
| Current Rating (Amps) | - | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | 26 | 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 26 | 26 |
| Shell Size - Insert [Min] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Male Pins |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.64 | |
| 10 | $ 76.75 | |||
| 100 | $ 67.40 | |||
MS3122E16 Series
CONN RCPT MALE 26POS GOLD CRIMP
| Part | Color | Termination | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Grade | Applications | Shell Finish | Fastening Type | Insert Material | Contact Material | Ingress Protection | Primary Material | Number of Positions | Connector Type | Shell Material | Mounting Feature | Contact Finish - Mating | Shielding | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Voltage Rating | Current Rating (Amps) | Type | Contact Size | Housing Color | Note | Contact Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3122E-16-26P | Olive Drab | Crimp | 16 | 26 | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Bayonet Lock | Neoprene | Copper Alloy | Environment Resistant | Metal | 26 | Male Pins, Receptacle | Aluminum | Flange | Gold | Unshielded | MIL-DTL-26482 Series I | -55 °C | 125 °C | N | ||||||||
Amphenol Industrial Operations MS3122E16-99P | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E16-26PW | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E16-26SW | Olive Drab | Crimp | 16 | 26 | Military | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Bayonet Lock | Neoprene | Copper Alloy | Environment Resistant | Metal | 26 | Receptacle, Female Sockets | Aluminum | Flange | Gold | Unshielded | MIL-DTL-26482 Series I | -55 °C | 125 °C | W | 600 VAC | 7.5 A | ||||||
Amphenol Industrial Operations MS3122E16-26S | Olive Drab | Crimp | 16 | 26 | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Bayonet Lock | Neoprene | Copper Alloy | Environment Resistant | Metal | 26 | Receptacle, Female Sockets | Aluminum | Flange | Gold | Unshielded | MIL-DTL-26482 Series I | -55 °C | 125 °C | N | ||||||||
Amphenol Industrial Operations MS3122E16-26SY | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E16-23P(LC) | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E16-26PY | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E16-99S | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E16-23P |
Description
General part information
MS3122E16 Series
26 Position Circular Connector Receptacle, Male Pins Crimp
