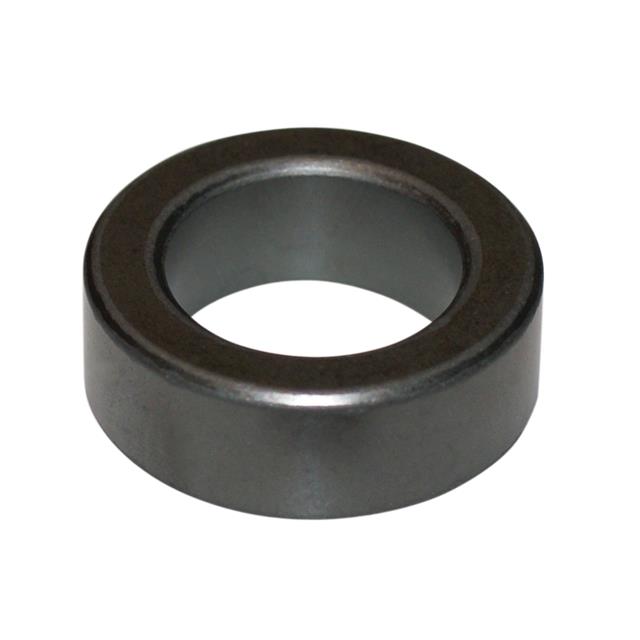

Specification	5995002701

Core Factor (ΣI/A)	0.01146 mm⁻²
Core Factor (ΣI/A) mm⁻¹	0.01146 mm⁻¹
Core Type	Toroid
Diameter	1.4 in
Effective Area (Ae)	78.3 mm²
Effective Length (le)	8.9 mm
Effective Magnetic Volume (Ve)	7024 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.5 in
Inductance Factor (Al)	3290 nH
Initial Permeability (µi)	3000
Material	95
Tolerance	25 %
