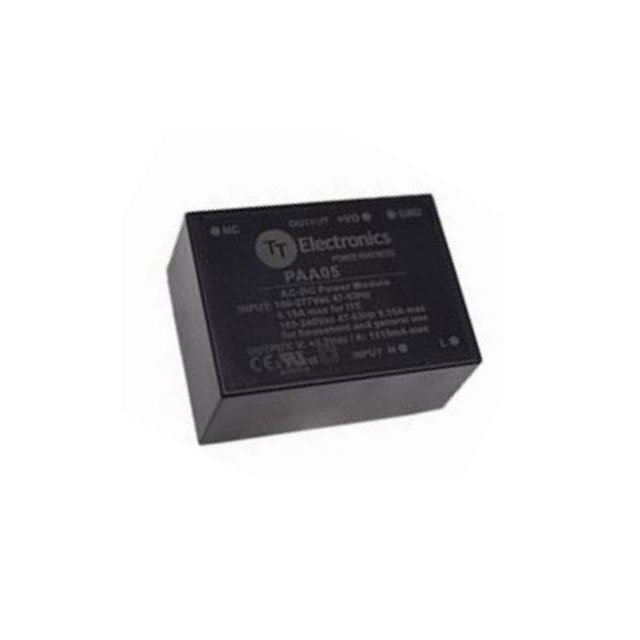

PAA05-10

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 5V 5W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	PAA05-10

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	1 A
Efficiency	77 %
Features	Universal Input
Line Regulation	±0.2%
Load Regulation	0.5 %
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	5-DIP Module
Power (Watts)	5 W
Size / Dimension [x]	1.46 in
Size / Dimension [x]	37 mm
Size / Dimension [y]	1.08 in
Size / Dimension [y]	27.5 mm
Size / Dimension [z]	17.5 mm
Size / Dimension [z]	0.69 "
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Output 1	5 V

AC/DC CONVERTER 5V 5W

Part	Approval Agency	Voltage - Output 1	Number of Outputs	Efficiency	Applications	Line Regulation	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features	Type	Package / Case	Load Regulation	Mounting Type	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]
TT Electronics/Power Partners Inc. PAA05-10	CB, CE, cURus	5 V	1	77 %	Household Appliances, ITE (Commercial)	±0.2%	1 A	1.46 in	37 mm	1.08 in	17.5 mm	0.69 "	27.5 mm	Universal Input	Enclosed	5-DIP Module	0.5 %	Through Hole	5 W	305 VAC, 430 VDC	90 VAC, 127 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.42

General part information

Enclosed AC DC Converters 1 Output 5V 1A 90 ~ 305 VAC, 127 ~ 430 VDC Input
