FMCA3162-48
ActiveFairview Microwave
CBL ASSY SHVJACK-SHVJACK 48
FMCA3162-48
ActiveFairview Microwave
CBL ASSY SHVJACK-SHVJACK 48
Description
General part information
FMCA3162-48

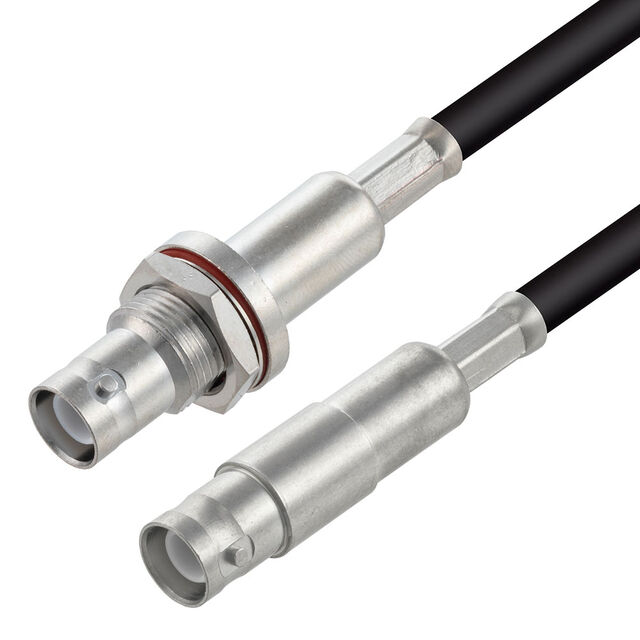

Cable Assembly Coaxial SHV to SHV RG-223 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3162-48 |
|---|---|
| 1st Connector | SHV Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SHV Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 300 MHz |
| Length | 48 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SHV |
