AB5030SHF-210X297

Active

3M (TC)

RF ABSORB SHEET 11.693"X8.268"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AB5030SHF-210X297

Active

3M (TC)

RF ABSORB SHEET 11.693"X8.268"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AB5030SHF-210X297

Adhesive	Single Sided, Non-Conductive
Length [x]	11.693 in
Length [x]	297 mm
Material	Metal Flakes, Polymer Resin
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.012 in
Thickness - Overall	0.3 mm
Type	Absorbing Sheet
Width [x]	210 mm
Width [x]	8.268 in

AB5030 Series

Part	Width [x]	Width	Operating Temperature [Min]	Operating Temperature [Max]	Shape	Adhesive	Type	Thickness - Overall	Thickness - Overall	Material	Width	Width [y]	Width [y]	Length	Length	Width [x]	Shelf Life	Shelf Life Start	Length [x]	Length [x]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature
3M (TC) 3M AB5030 1.5" X 8.625"-100	1.5 in	38.1 mm	-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin
3M (TC) 3M AB5030 4.13" X 8.625"-25		104.9 mm	-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin	4.13 in
3M (TC) 3M AB5030 CIRCLE-0.938"-250			-25 °C	85 °C	Circular	Non-Conductive Single Sided	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin		0.938 in	23.83 mm
3M (TC) 3M AB5030 1.03" X 15M	1.03 in	26.16 mm	-25 °C	85 °C	Roll	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin				15 m	49.21 '
3M (TC) 3M AB5030 1.5" X 4"-100	1.5 in	38.1 mm	-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin				101.6 mm	4 in
3M (TC) 3M AB5030 1.5" X 2"-100	1.5 in	38.1 mm	-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin				50.8 mm	2 in
3M (TC) 3M AB5030 2" X 3"-25	2 in		-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin				76.2 mm	3 in	50.8 mm
3M (TC) 3M AB5030 0.5" X 0.75"-250			-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin				19.05 mm	0.75 in
3M (TC) AB5030SHF-210X297	8.268 in				Rectangular	Non-Conductive Single Sided	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin						210 mm	12 Months	Date of Shipment	11.693 in	297 mm	70 °F	21 °C
3M (TC) 3M AB5030 0.75" X 1.5"-250			-25 °C	85 °C	Rectangular	Acrylic Pressure Sensitive Adhesive (PSA) Non-Conductive	Absorbing Sheet	0.012 in	0.3 mm	Metal Flakes Polymer Resin		0.75 in	19.05 mm	38.1 mm	1.5 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.80
LCSC	Piece	1	$ 35.50
		200	$ 14.16
		500	$ 13.69
		1000	$ 13.46

Description

General part information

AB5030 Series

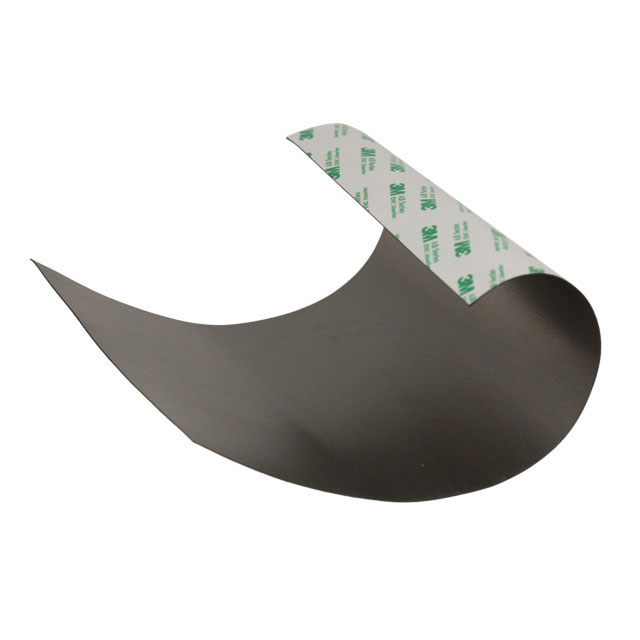

RF EMI Absorbing Sheet AB50000SHF Polymer Resin, Metal Flakes Non-Conductive, Single Sided 8.268" (210.00mm) X 11.693" (297.00mm) X 0.012" (0.30mm)
