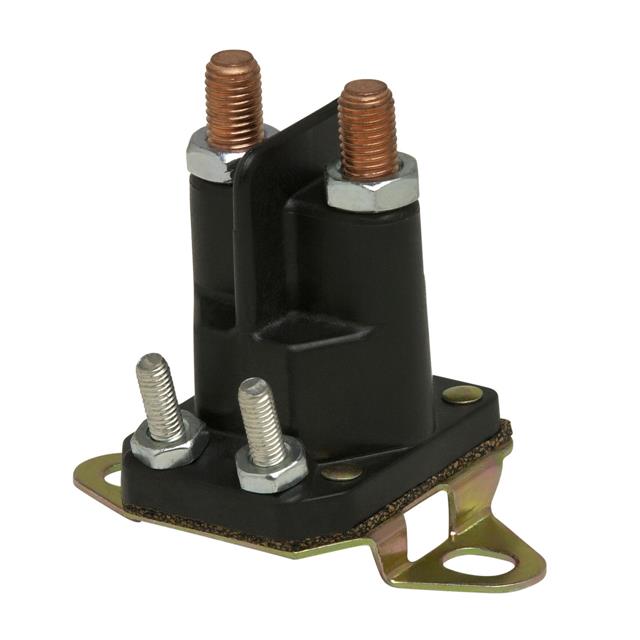

24612-13

Active

Cole Hersee

RELAY GEN PURPOSE SPST 200A 12V

Search across all available documentation for this part.

Active

Cole Hersee

RELAY GEN PURPOSE SPST 200A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPST 100A 12V

Part	Termination Style	Contact Rating (Current)	Relay Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Coil Type	Coil Voltage	Mounting Type	Contact Material	Contact Form
Cole Hersee 24612-10	Screw Terminal	100 A	General Purpose	5 ms	-40 °C	60 °C	5 ms	Non Latching	12 VDC	Chassis Mount	Silver (Ag)	SPST-NO (1 Form A)
Cole Hersee 24612-13	Screw Terminal	200 A	General Purpose	5 ms	-40 °C	60 °C	5 ms	Non Latching	12 VDC	Chassis Mount	Copper	SPST-NO (1 Form A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 16.20

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
