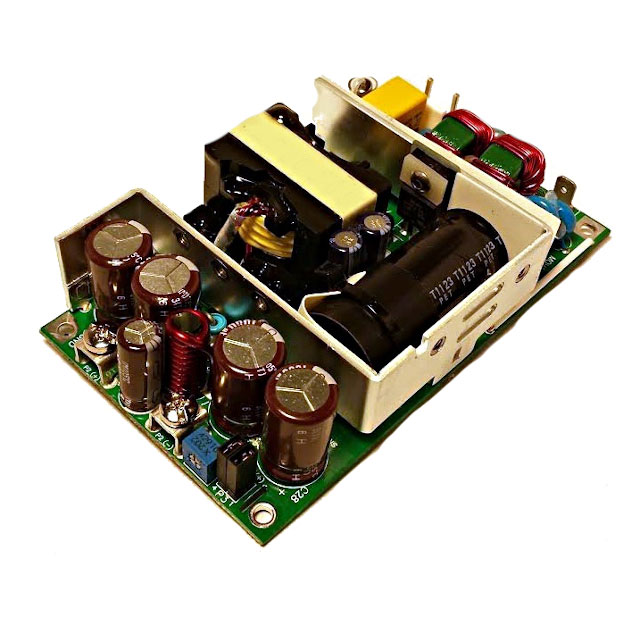

1011364
ActiveIntegrated Power Designs
AC/DC CONVERTER 12V 80W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1011364
ActiveIntegrated Power Designs
AC/DC CONVERTER 12V 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1011364 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 6.7 A |
| Efficiency | 87 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 80 W |
| Size / Dimension [x] | 4.25 in |
| Size / Dimension [x] | 108 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [z] | 21.1 mm |
| Size / Dimension [z] | 0.83 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 89.68 | |
| 25 | $ 85.61 | |||
| 100 | $ 83.21 | |||
Description
General part information
1011364
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
