3240709

Active

Phoenix Contact

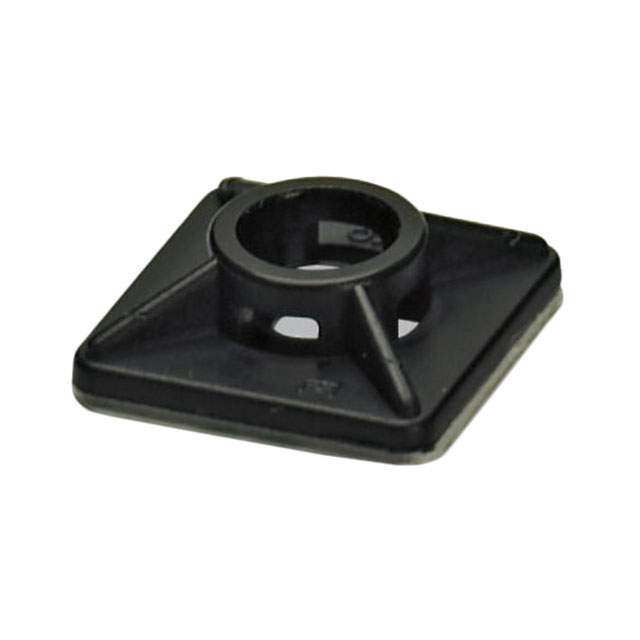

CABLE TIE HLDR QUAD ADH BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE TIE HLDR QUAD ADH BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240709	WT-BASE Series

Color	Black	Black
For Use With/Related Products	Cable Ties	Cable Ties
For Use With/Related Products [Max]	6 mm	6 - 9.5 mm
For Use With/Related Products [Max]	0.236 in	0.236 - 0.374 in
Material	ABS, Halogen Free	ABS, Halogen Free, Nylon
Mounting Type	Adhesive, Screw	Adhesive, Screw, Push In - Ribbed Shaft
Size / Dimension [x]	1.06 "	0.79 - 1.06 "
Size / Dimension [x]	27 mm	20 - 27 mm
Size / Dimension [y]	27 mm	13 - 27 mm
Size / Dimension [y]	1.06 in	0.51 - 1.06 in
Size / Dimension [z]	6.5 mm	6.5 - 43 mm
Size / Dimension [z]	0.26 "	0.26 - 1.69 "
Type	Quad Opening	Quad Opening, Single Opening

CABLE TIE HLDR QUAD ADH BLACK

Part	Color	Type	Mounting Type	Material	For Use With/Related Products [Max]	For Use With/Related Products [Max]	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Phoenix Contact 3240709	Black	Quad Opening	Adhesive, Screw	ABS, Halogen Free	6 mm	0.236 in	Cable Ties	6.5 mm	0.26 "	1.06 "	27 mm	1.06 in	27 mm
Phoenix Contact 3240710	Black	Single Opening	Push In - Ribbed Shaft	Nylon	9.5 mm	0.374 in		43 mm	1.69 in	0.79 in	13 mm	0.51 in	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Quad Opening Cable Tie Holder Black Adhesive, Screw
