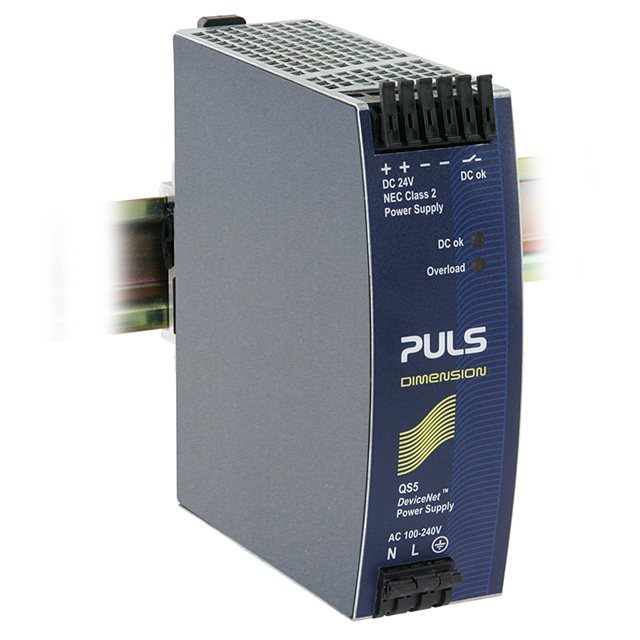

QS5.DNET

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 91W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 91W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QS5.DNET	QS5 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	ITE (Commercial), Hazardous Locations	ITE (Commercial), Hazardous Locations
Approval Agency	IEC, CSA, UL, NEC, SEMI, EAC, ABS, DNV GL	IEC, CSA, UL, NEC, SEMI, EAC, ABS, DNV GL, IECEx, ATEX
Current - Output (Max) [Max]	3.8 A	3.8 - 5 A
DC Voltage - Input (Max)	-	360 V
DC Voltage - Input (Min)	-	88 V
Efficiency	92 %	92 - 92.7 %
Features	PFC, Adjustable Output, Load Sharing	PFC, Adjustable Output, Load Sharing
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	91 W	91 W
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [x]	4.61 "	4.61 "
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	F47, Class I Div 2, 60950-1, 508, Class 2, 61010-2-201	F47, Class I Div 2, 60950-1, 508, Class 2, 61010-2-201
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	24 V

AC/DC DIN RAIL SUPPLY 24V 91W

Part	Applications	Standard Number	Current - Output (Max) [Max]	Voltage - Isolation	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Number of Outputs	Input Type	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]
PULS, LP QS5.DNET	Hazardous Locations, ITE (Commercial)	508, 60950-1, 61010-2-201, Class 2, Class I Div 2, F47	3.8 A	500 V	ABS, CSA, DNV GL, EAC, IEC, NEC, SEMI, UL	-10 °C	70 °C	Adjustable Output, Load Sharing, PFC	92 %	1	AC	91 W	1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	85 VAC	264 VAC	24 V
PULS, LP QS5.241	Hazardous Locations, ITE (Commercial)	508, 60950-1, 61010-2-201, Class I Div 2, F47	5 A	500 V	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	-10 °C	70 °C	Adjustable Output, Load Sharing, PFC	92.7 %	1	AC		1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	85 VAC	264 VAC	24 V
PULS, LP QS5.241-A1	Hazardous Locations, ITE (Commercial)	508, 60950-1, 61010-2-201, Class I Div 2, F47	5 A	500 V	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL	-10 °C	70 °C	Adjustable Output, Load Sharing, PFC	92.7 %	1	AC		1.57 "	124 mm	117 mm	4.61 "	4.88 "	40 mm	85 VAC	264 VAC	24 V	360 V	88 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 391.50

General part information

AC/DC DIN RAIL SUPPLY 24V 91W
