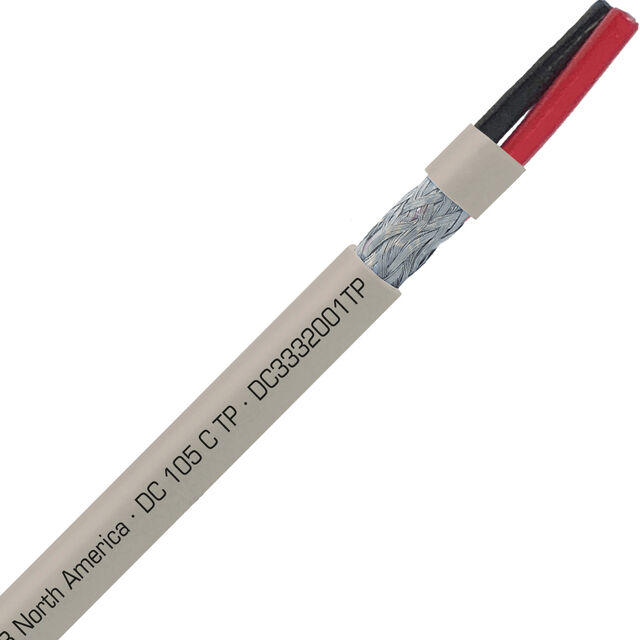

DC3332001TP

Active

SAB North America

MULTI-PAIR 2COND 20AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 2COND 20AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332001TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	20 AWG

MULTI-PAIR 2COND 20AWG GRY 1=1FT

Part	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Shield Material	Jacket (Insulation) Material	Length	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Features	Conductor Insulation
SAB North America DC3332001TP	2	-25 °C	105 ░C	Gray	Copper, Tinned	Poly-Vinyl Chloride (PVC)	Enter Number of Feet in Order Quantity	Copper, Tinned	Braid, Foil	0.22 in	5.59 mm	Multi-Pair	300 V	19	32 AWG	20 AWG	Oil Resistant	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Pair Cable Gray 20 AWG Foil, Braid Enter Number of Feet in Order Quantity
