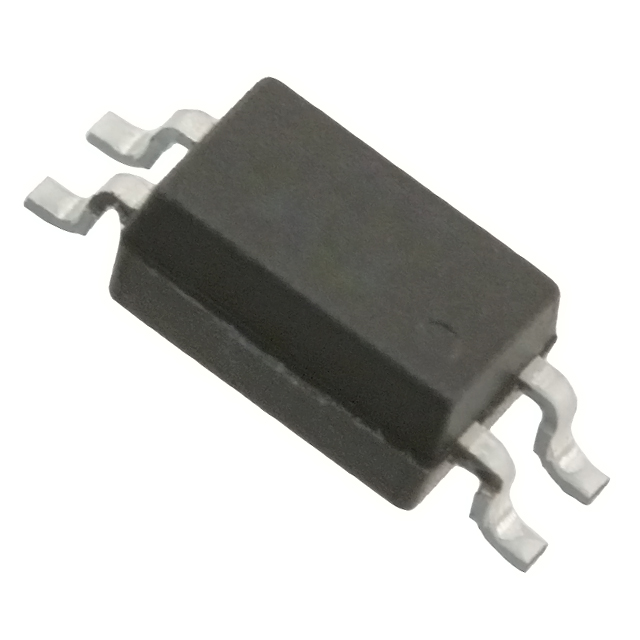

VOS615A-4T

Active

Vishay General Semiconductor - Diodes Division

OPTOISOLATOR 3.75KV TRANS 4SSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOption Information Datasheet

VOS615A-4T

Active

Vishay General Semiconductor - Diodes Division

OPTOISOLATOR 3.75KV TRANS 4SSOP

Deep-Dive with AI

DocumentsOption Information Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOS615A-4T

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	200 %
Current Transfer Ratio (Min) [Min]	100 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-SOIC
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-SSOP
Turn On / Turn Off Time (Typ)	5 µs
Vce Saturation (Max) [Max]	400 mV
Voltage - Isolation	3750 Vrms

VOS615 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Current - DC Forward (If) (Max)	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Package / Case [y]	Package / Case	Package / Case [x]	Voltage - Isolation	Number of Channels	Current Transfer Ratio (Min) [Min]	Vce Saturation (Max) [Max]	Turn On / Turn Off Time (Typ)	Current - Output / Channel	Mounting Type	Supplier Device Package
Vishay General Semiconductor - Diodes Division VOS615A-2X001T	-55 °C	110 °C	1.81 mOhm	50 mA	125 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	63 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP
Vishay General Semiconductor - Diodes Division VOS615A-4X001T	-55 °C	110 °C	1.81 mOhm	50 mA	320 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	160 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP
Vishay General Semiconductor - Diodes Division VOS615A-3T	-55 °C	110 °C	1.81 mOhm	50 mA	200 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	100 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP
Vishay General Semiconductor - Diodes Division VOS615A-2T	-55 °C	110 °C	1.81 mOhm	50 mA	80 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	40 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP
Vishay General Semiconductor - Diodes Division VOS615A-4T	-55 °C	110 °C	1.81 mOhm	50 mA	200 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	100 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP
Vishay General Semiconductor - Diodes Division VOS615A-X001T	-55 °C	110 °C	1.81 mOhm	50 mA	600 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	40 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP
Vishay General Semiconductor - Diodes Division VOS615A-3X001T	-55 °C	110 °C	1.81 mOhm	50 mA	200 %	3 µs	4 µs	DC	4.4 mm	4-SOIC	0.173 in	3750 Vrms	1	100 %	400 mV	5 µs	50 mA	Surface Mount	4-SSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.52
		10	$ 0.34
		100	$ 0.23
		1000	$ 0.18
	Digi-Reel®	1	$ 0.52
		10	$ 0.34
		100	$ 0.23
		1000	$ 0.18
	Tape & Reel (TR)	3000	$ 0.16
		6000	$ 0.15
		15000	$ 0.14
		30000	$ 0.14

Description

General part information

VOS615 Series

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP

Documents

Technical documentation and resources

Option Information

Datasheet
