Description
General part information

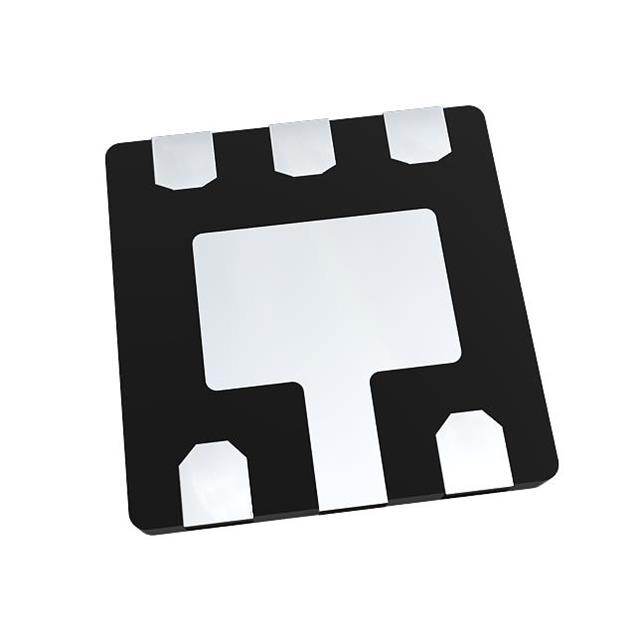

AZC015-04F
Clamp Ipp Tvs Diode Surface Mount QFN1616P6E
Technical Specifications
Parameters and characteristics for this part
| Specification | AZC015-04F |
|---|---|
| Applications | USB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 6-PowerUFDFN |
| Package Name | QFN1616P6E |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6 V |
| Voltage - Reverse Standoff (Max) | 5 V |
